QUATTRO-F

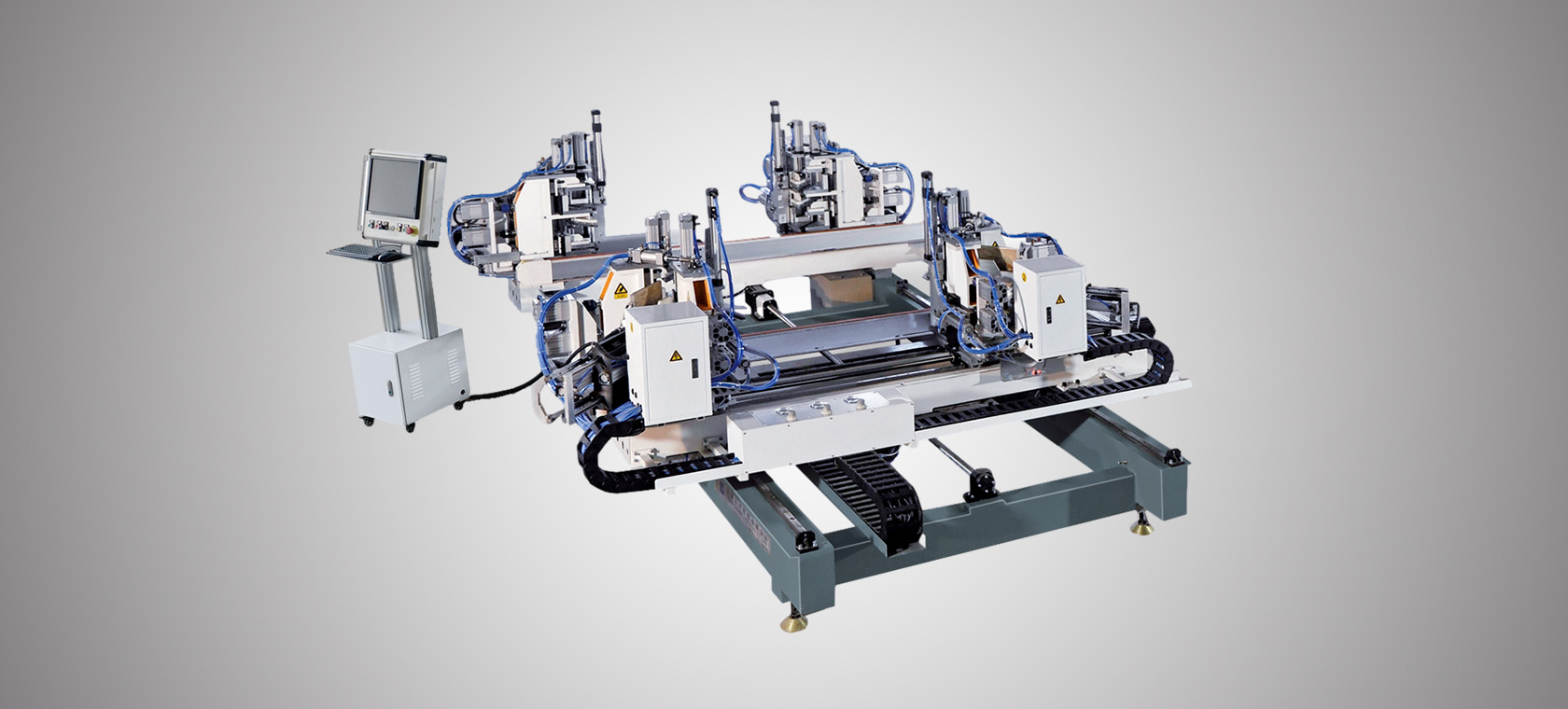

CNC 4 Layer Horizontal 4 Point Welding Machine

Features:

1. It can achieve seam(2mm) welding.(For white profile)

2. Four storey welding, can weld four window frame in one time.

3. Based on IPC platform, easy to operate.

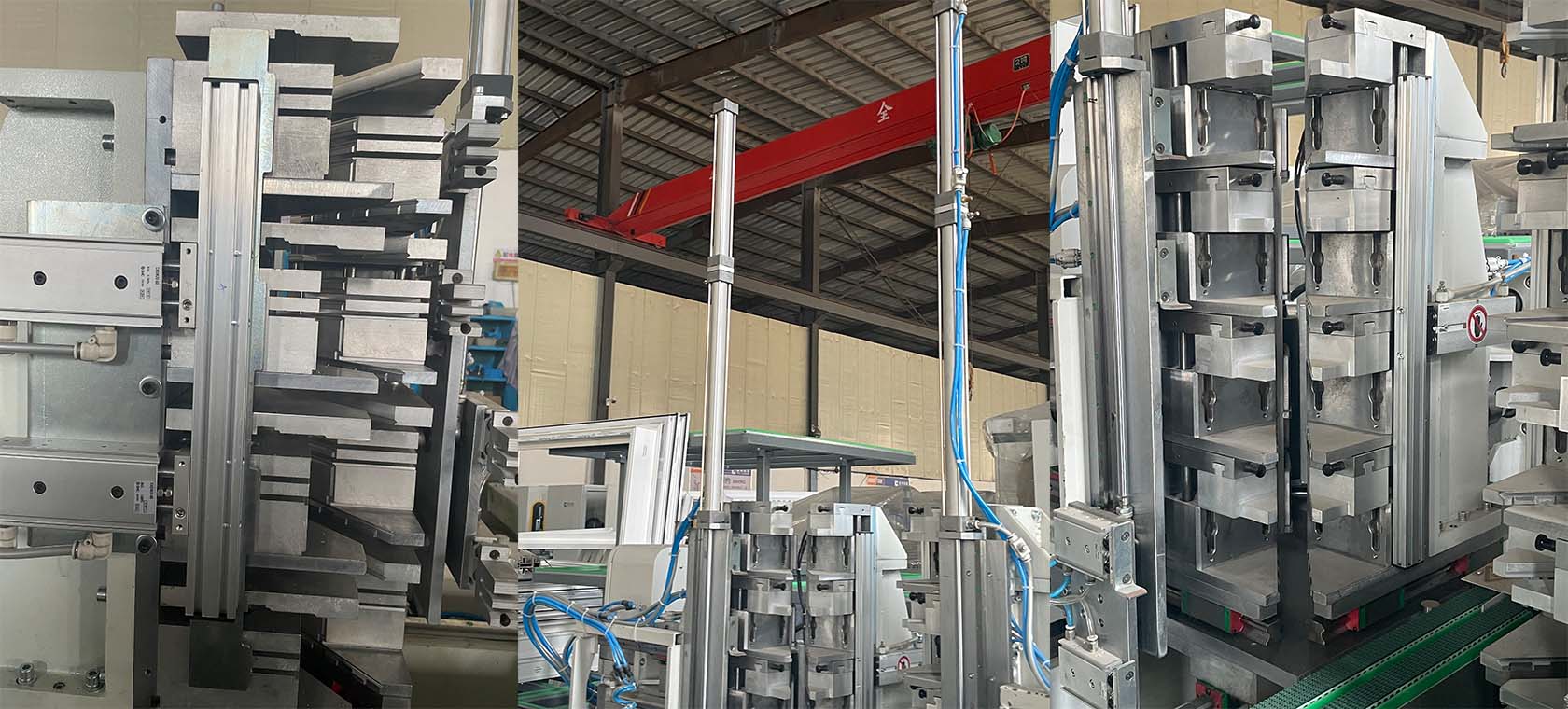

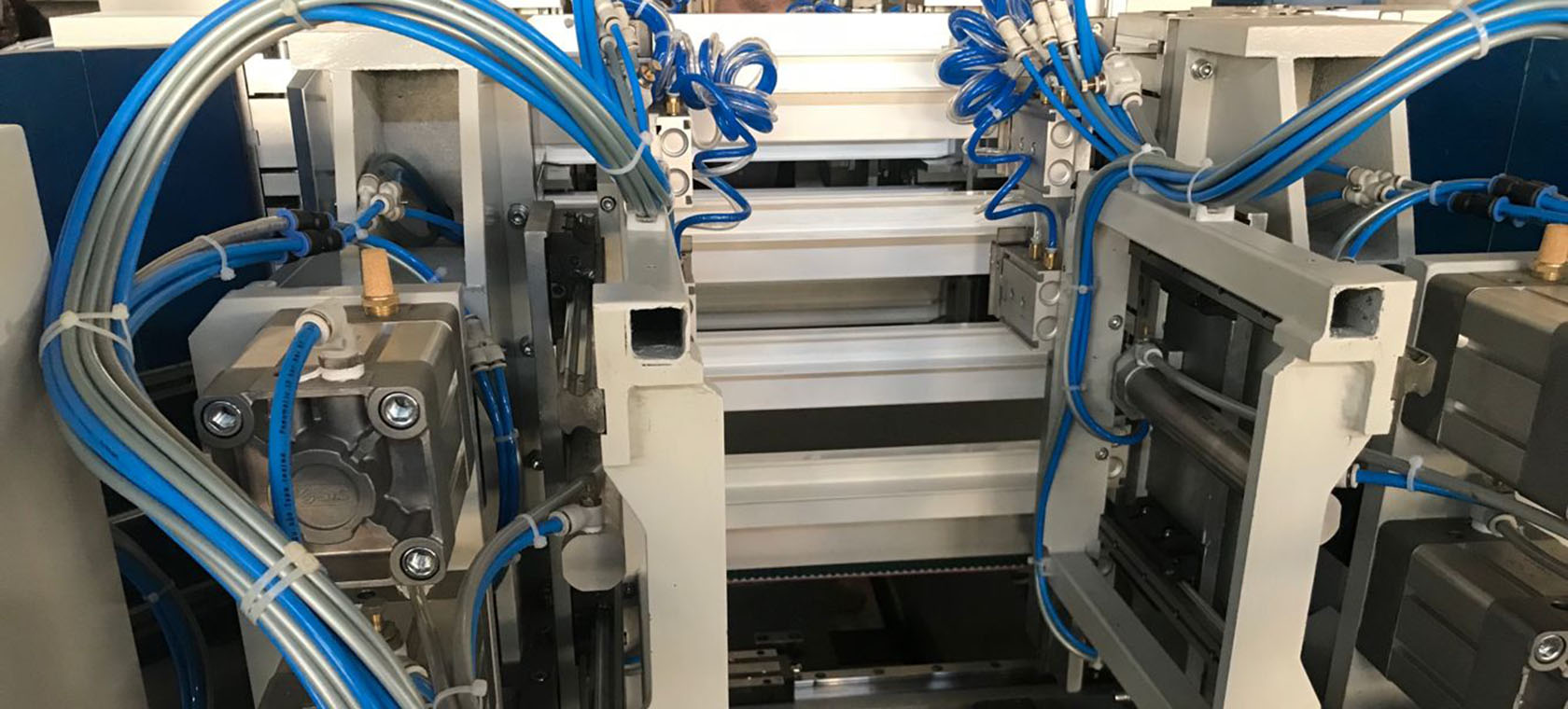

4. Every storey has independent welding jig, all of the jig can clamp independently to guarantee the welding quality.

5. The elastic position plate can reduce the effect of the feeding length error on the finished production’s size and ensure the uniformity of the productions’ size.

6. Adopt to high precision linear square rail to ensure the precision and long life service.

7. Move on the 3 axis ball screw, high accuracy.

8. Adopt to 3 axis CNC system, can achieve the welding of different size profiles.

9. Equipped with booster pump and air tank to ensure the constant feeding pressure.

10. Each storey can achieve two cylinder feeding. It makes the upper and lower plates bear the uniform force and have a better welding effect.

Main   accessory

Controlling   system

Schneider   or other word famous system.

Servo   Motor

Schneider   or other word famous system.

Solenoid   valve

AirTAC

Cylinder

AirTAC

Air   Filter Device

AirTAC

Electrical   Button and Switcher

Schneider

AC   Contactor and Circuit Breaker

Schneider

Approach   Switcher

Swiss   CONTRINEX or Japan Omron

Linear   bearing system

Linear   (South Korean brand)

Temperature   Controller

Japan   Omron


Parameters

Input Voltage

3N50Hz 380V/220V

Input Power

16(kw)

Operation Air Pressure

0.50.8(MPa)

Air Consumption

300(L/min)

Welding Height

35100(mm)

Welding Width

100(mm)

Welding Range

500x500~2400x2800(mm)
