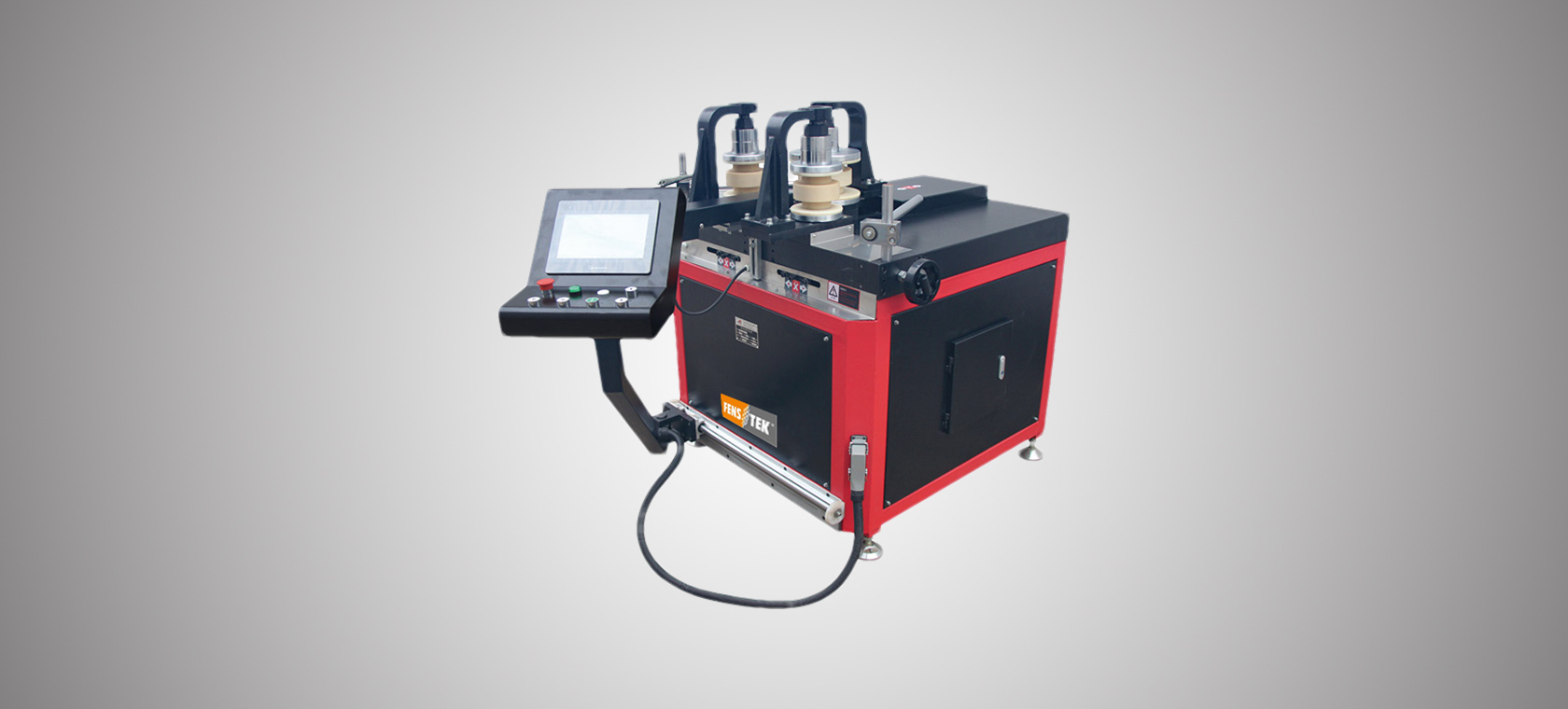

BM20T

CNC Bending Machine For Aluminium Window Processing

Feature:

1. CNC Bending Machine BM20T is used for irregular aluminium profile、rectangular iron pipe bending,it is the decoration company,aluminium doors and window company bending arc of the machine.

2. The machine adopts imported control unit, servo hydraulic station, AC servo drive system

3. High precision: cylinder repeat positioning accuracy ≤ 0. 02mm

4. The machine configuration has anti-jamming module, bending radian consistent good performance.

5. All profiles can be a bending; also can according to need repeated bending

6. The bending shape: C shape, U shape, 3R shape, multi section arc process

7. Other functions of the application software:auxiliary calculation function, self diagnosis function, manual correction function

8. The reducer is connected with the roller transition, easy to repair.

 Parameters


Input Voltage

380V 50Hz or As Customer Specification

Input Power

4.0Kw

Y axis hydraulic thrust

13 ton

Y axis repeat position

0.02mm

X axis max. torque

2500N.meter

Three axis rpm

1-15 rpm

Axis clearance

350 – 600 mm

Axis diameter

50mm

Max. profile section

120mm (W) x 150mm (H)

Main Machine Dimension

1200×1100×1400mm

Cabinet dimension

500x300x1200mm

Weight

900kg
