AVW3000

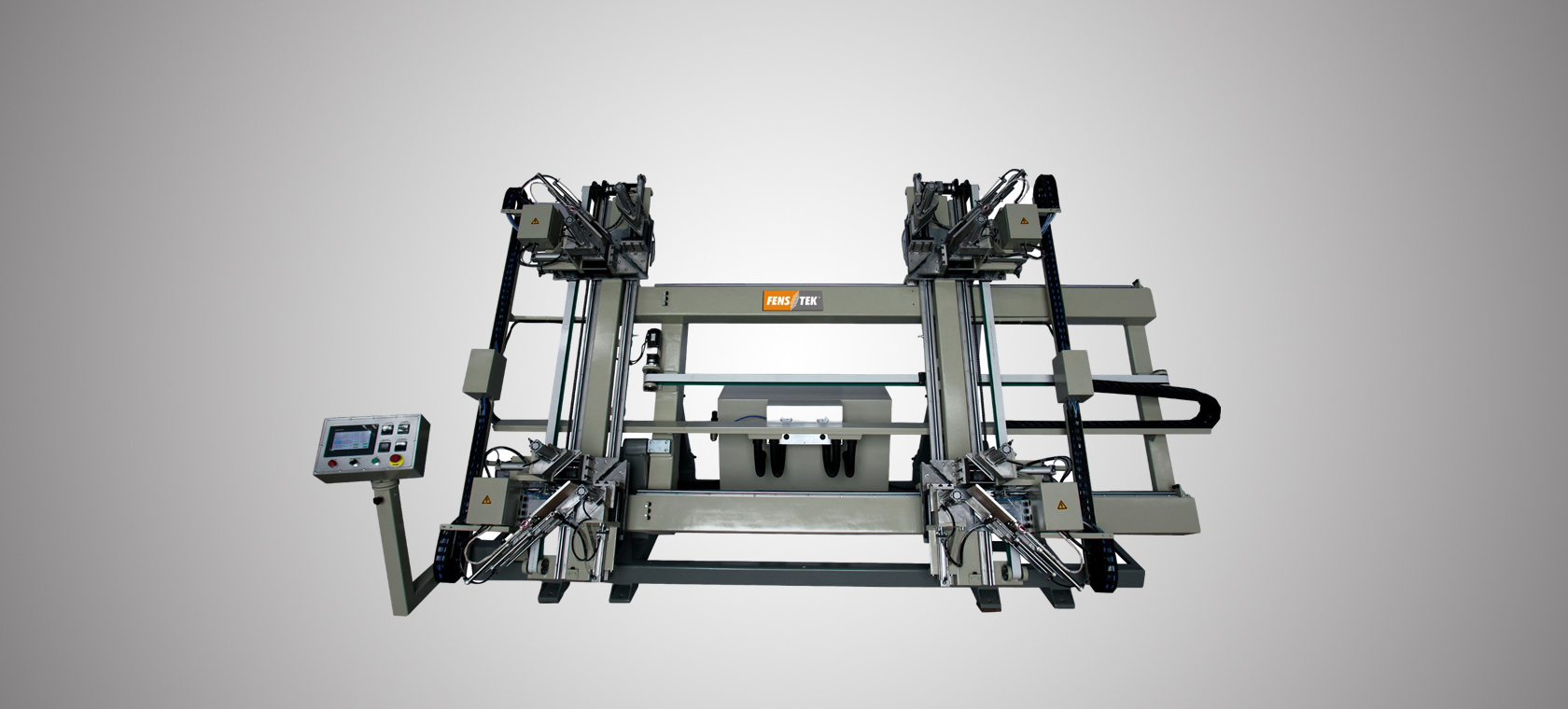

UPVC Window CNC Vertical 4 Point Welding Machine

Features:

1. Four Point Welding Machine is One working cycle, one frame fully automatically UPVC Window Welding Machine.

2. Auto positioning by worldwide famous brand AC servo motor.

3. Solid machinery base and structure ensure long life service with high dimension accuracy.

4. Size tolerance compensation is available to increase welding precision.

5. Vertical type occupies less space and is ergonomically good for profile loading.

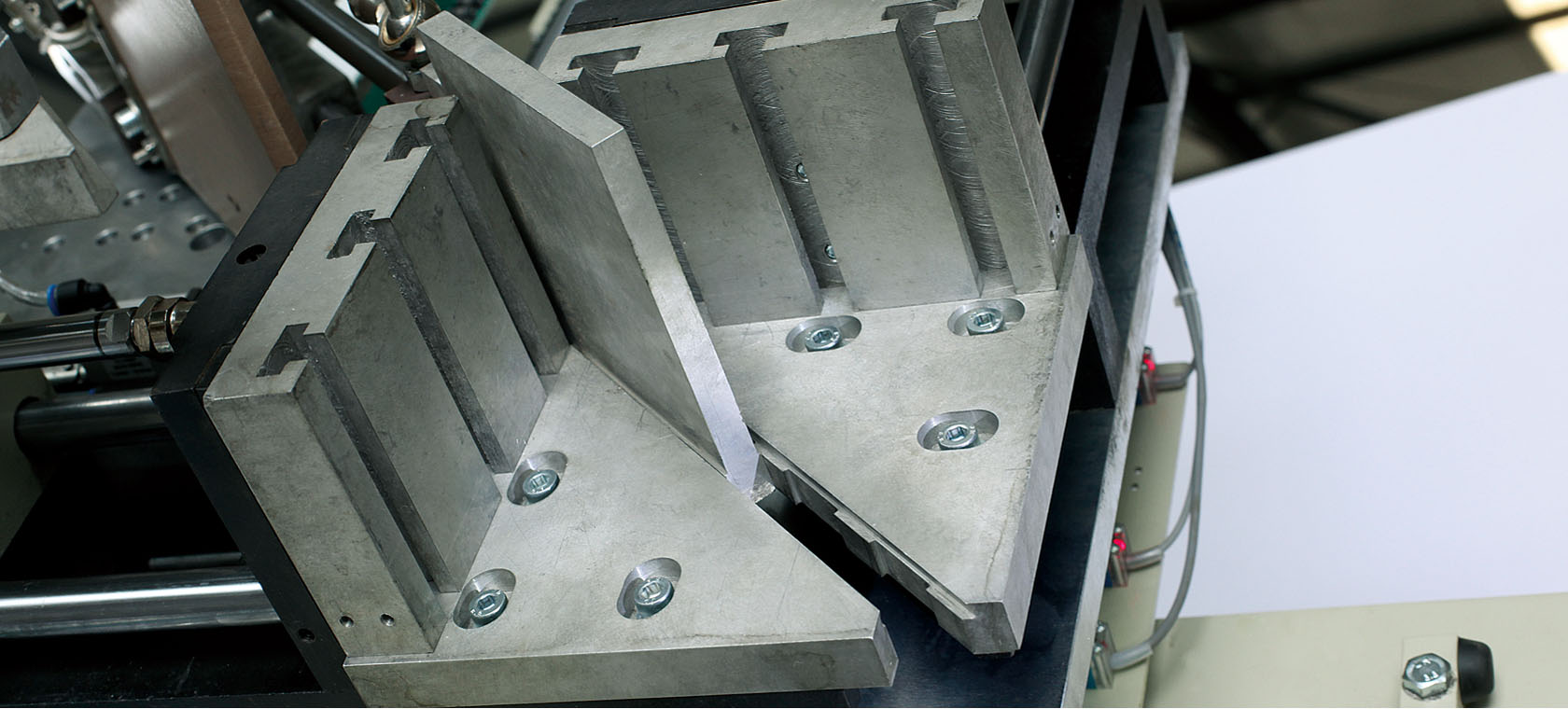

6. Profile fixture ordered separately can meet various profiles' processing requirement.

7. Special “Know — How” technique keep the high corner strength.

8. Advanced “Parallel welding “technique is available for the AVW3000P to achieve better
Welding result.

9. Optional horizontal model (AHW3000P) is possible to integrate into a welding and cleaning production line with CNC corner cleaning machine at later time.

Main accessory:

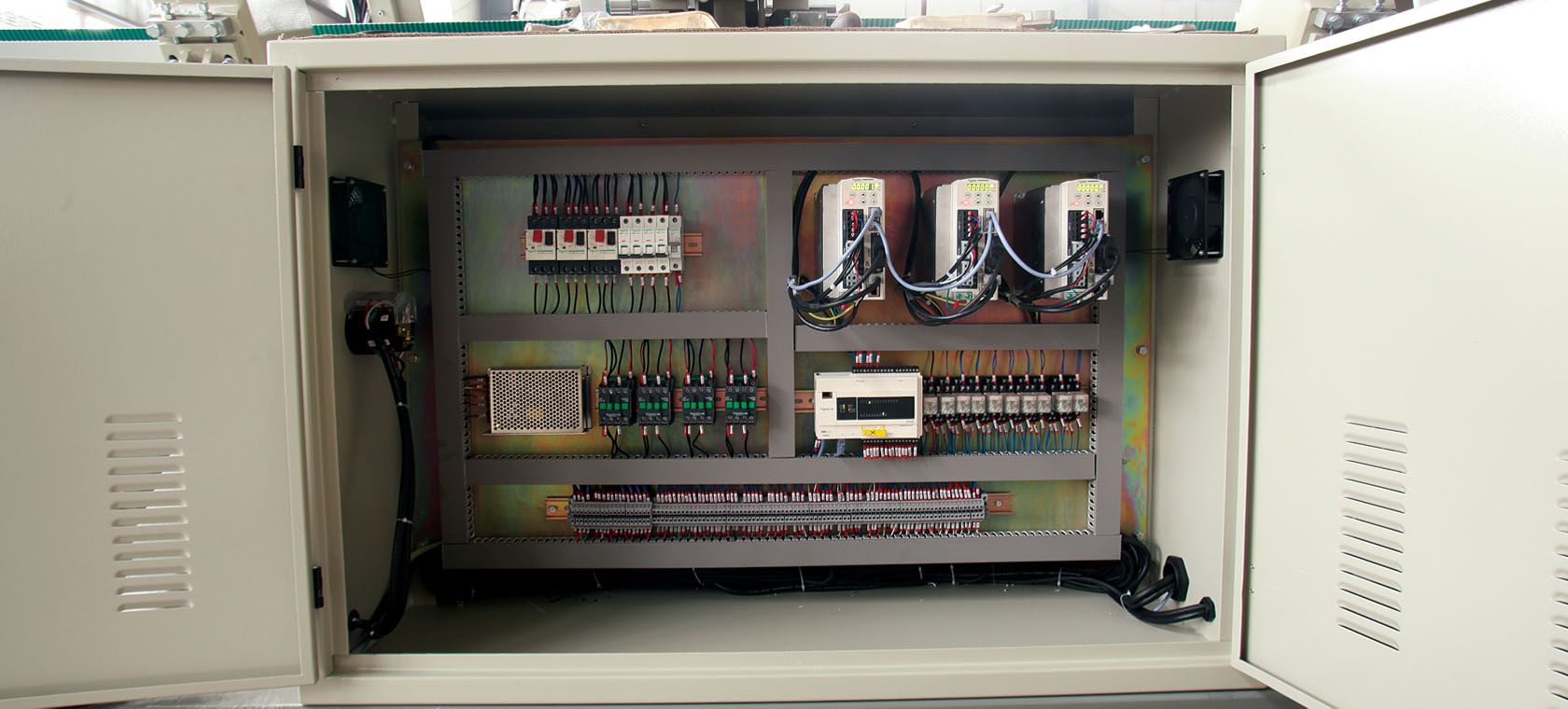

• Controlling system

Schneider or other world famous system.

 Servo Motor

Schneider or other world famous system.

• Solenoid valve

Airtac

• Cylinder

Airtac

• Air Filter Device

Airtac

• Electrical Button and Switcher

Schneider

• AC Contactor and Circuit Breaker

Schneider

 Approach Switcher

Swiss CONTRINEX or Japan Omron

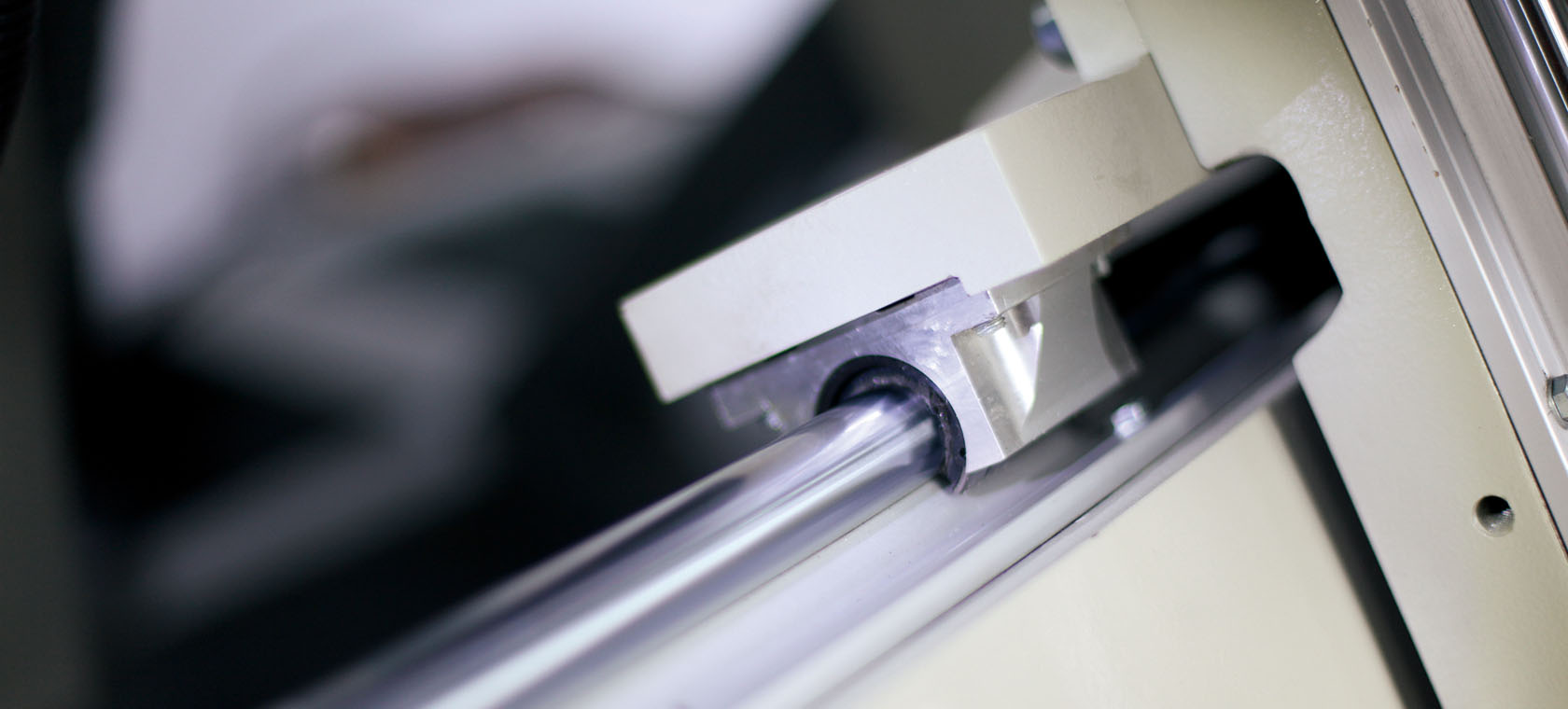

 Linear bearing system

Linear (South Korean brand)

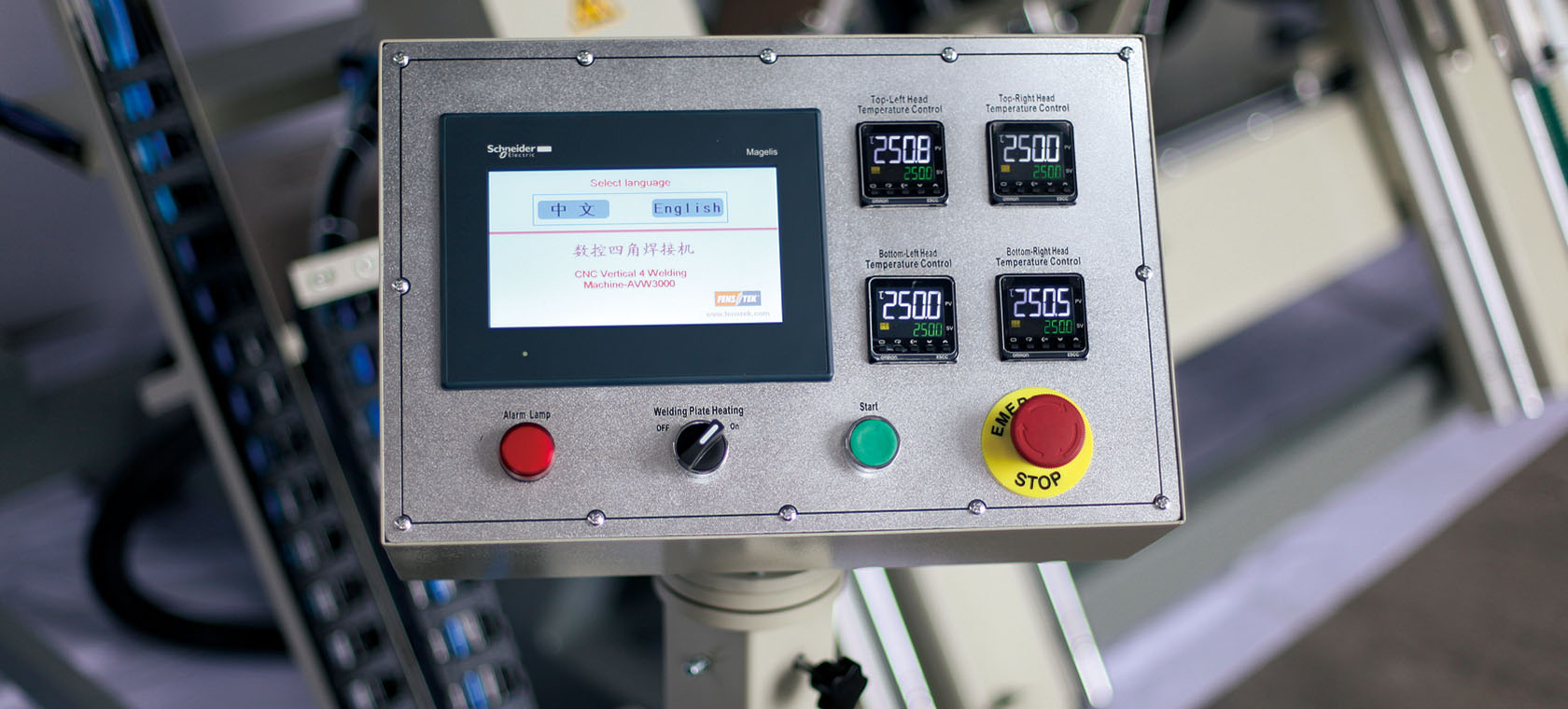

 Temperature Controller

Japan Omron

Parameter:


Air Pressure

0.5~0.8MPa

Air Consumption

80L/min

Input Voltage

380V 50HZ or Customer specification

Input Power

10kw

Welding Height

25~160mm

Welding Width(Max)

120mm

Welding Range

400×400~1800×3000mm

Overall Dimension

5300×2100×2720mm (AVW3000P or AVW3000)


5600 x 3400 x2000 (AHW3000P)

Weight

3200kg
