AVW3000D

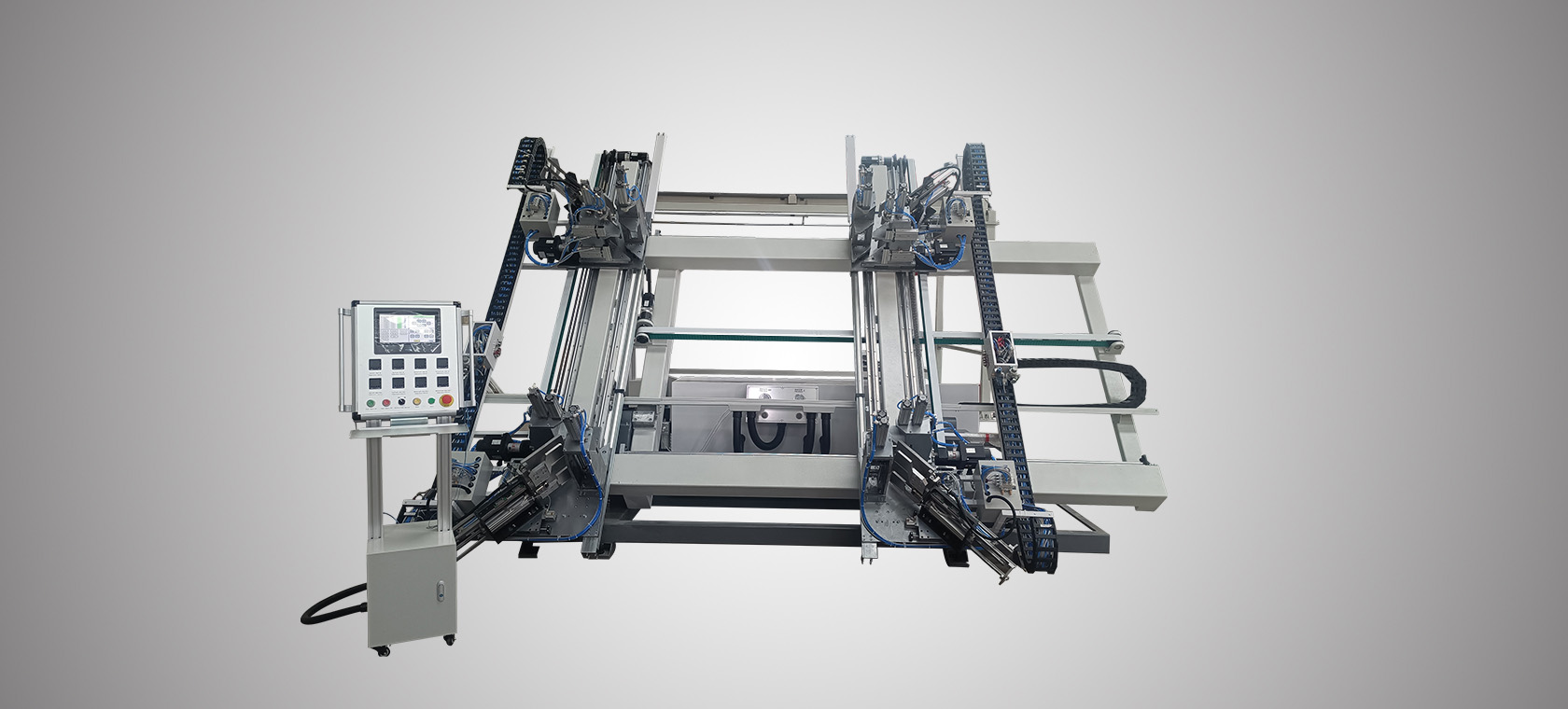

CNC Vertical Double Layer 4 Point Welding Machine

Features:

1.Double layers for 2 unit one time.High efficiency.

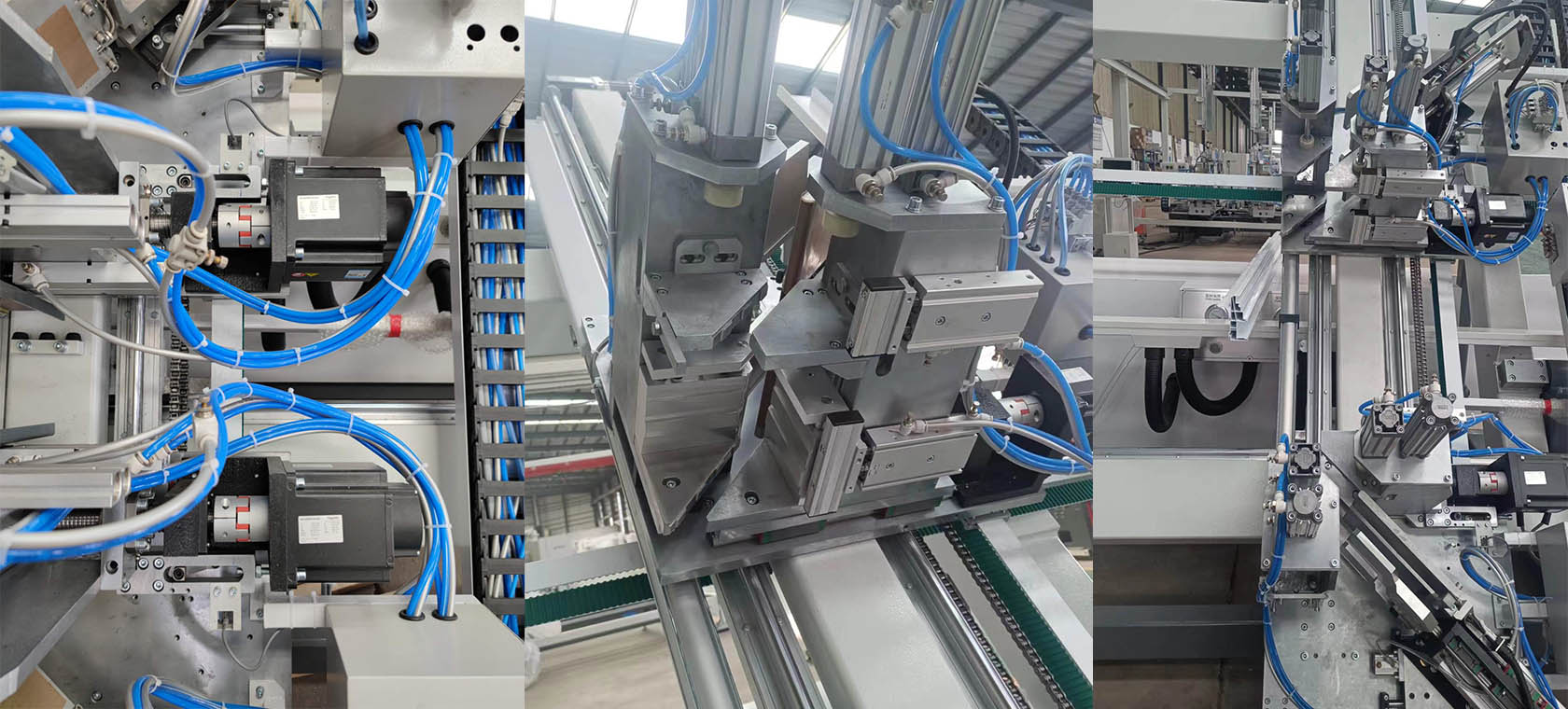

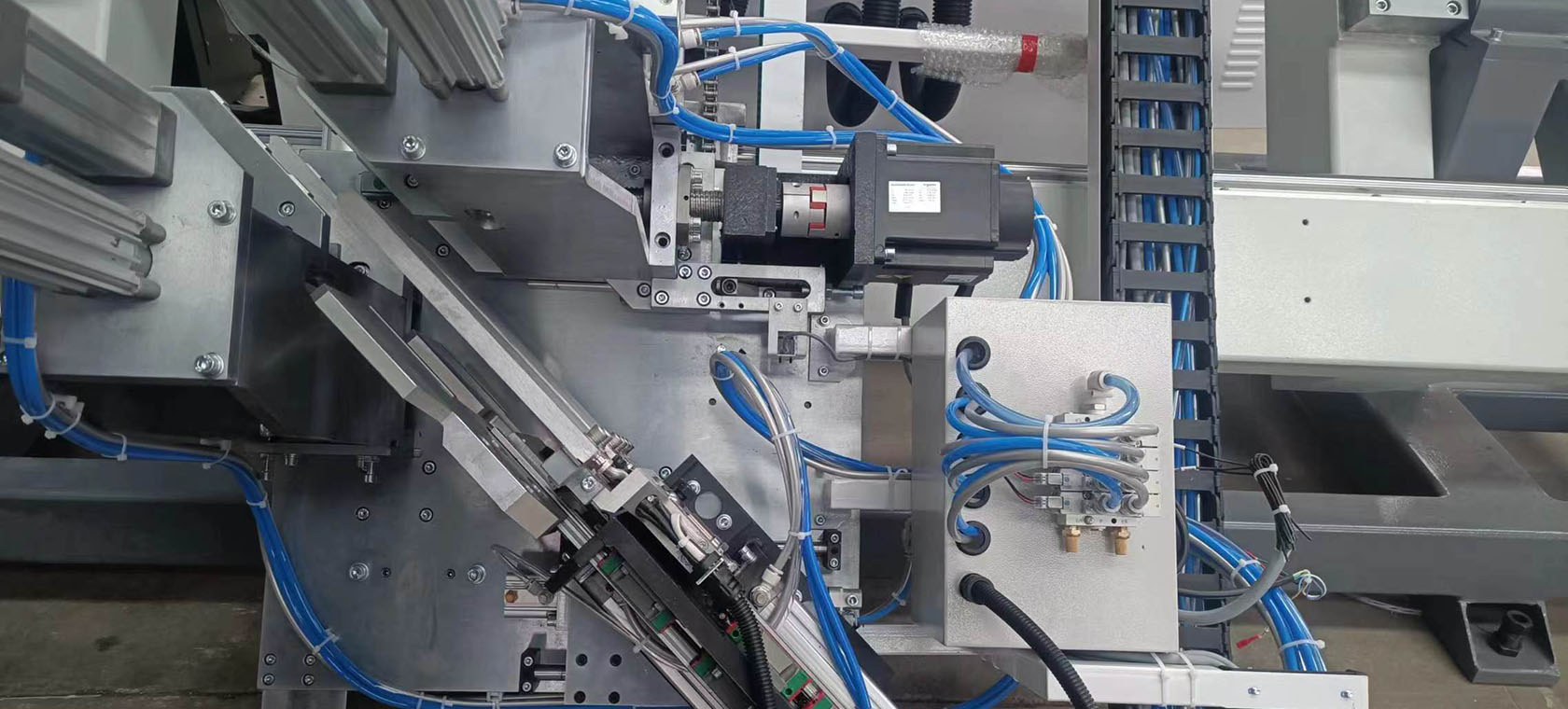

2.Auto positioning and feeding by servo motor. More precise.

3.Solid machinery base and structure ensure long life service with high dimension accuracy.

4.Size tolerance compensation is available to increase welding precision

5.Vertical type occupies less space and is ergonomically good for profile loading.

6.Profile fixture ordered separately can meet various profiles' processing requirement

7.Special “Know — How” technique keep the high corner strength

8.Advanced “Parallel welding “technique is available for the AVW3000P to achieve better
Welding result.

Main accessory:

• Controlling system

SIEMENS or other world famous system.

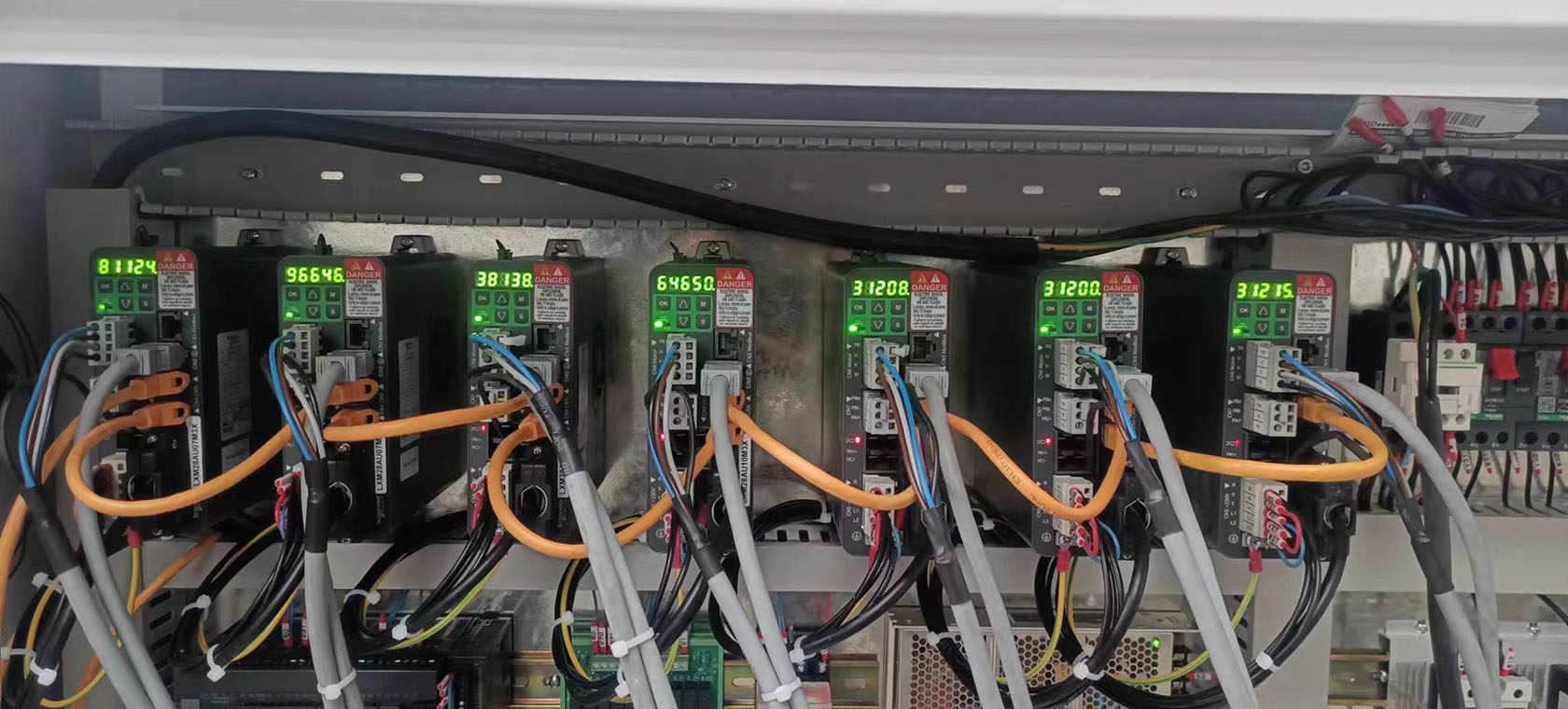

• Servo Motor

SIEMENS or other world famous system.

• Solenoid valve

AirTAC

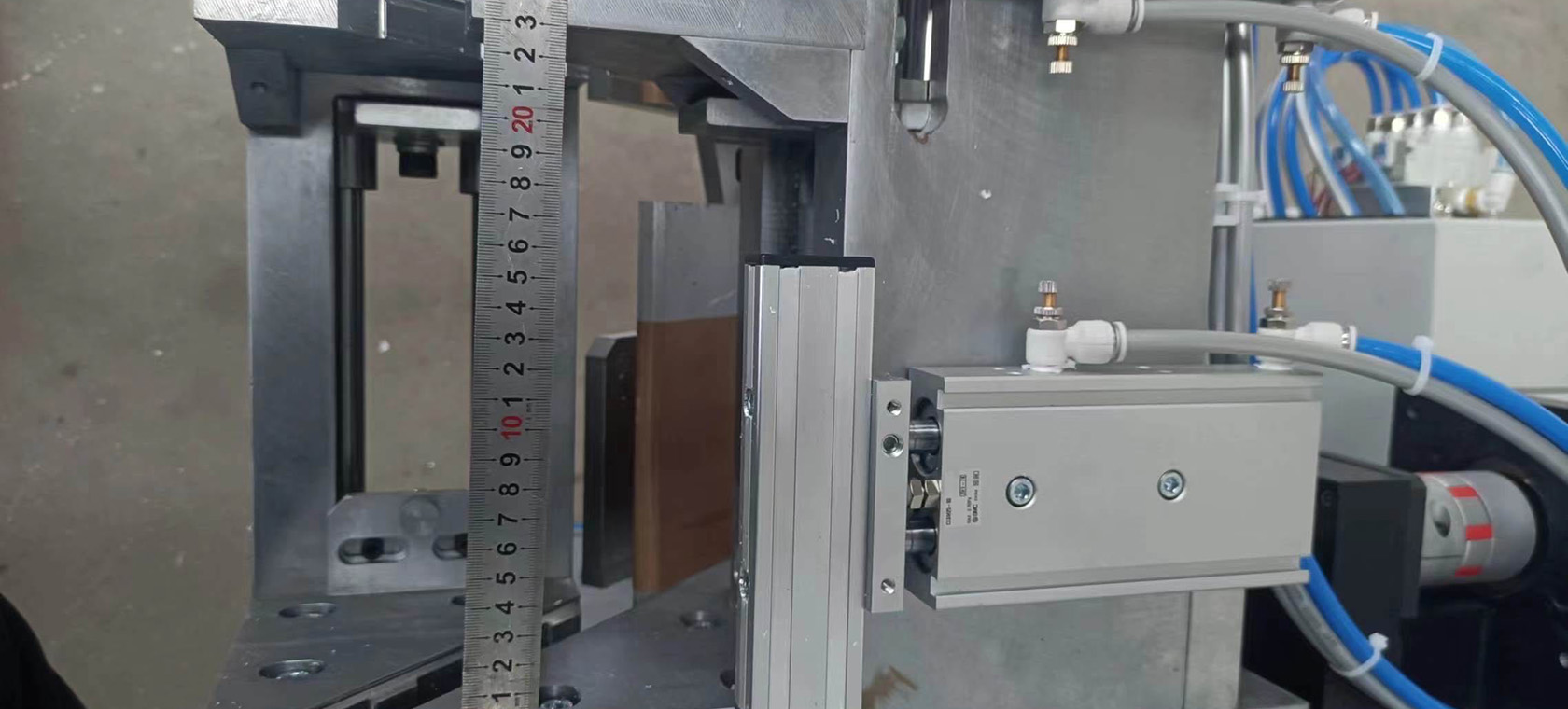

• Cylinder

AirTAC

• Air Filter Device

AirTAC

• Electrical Button and Switcher

Schneider

• AC Contactor and Circuit Breaker

Schneider

• Approach Switcher

Swiss CONTRINEX or Japan Omron

• Linear bearing system

Linear (South Korean brand)

• Temperature Controller

Japan Omron


Parameter:

Air Pressure

0.50.8MPa

Air   Consumption

80L/min

Input Voltage

380V 50HZ or Customer specification

Input Power

10kw

Welding Height

25160mm

Welding   Width(Max)

100mm

Max Welding   Range

2000×3000mm

Overall   Dimension

5300×2100×2720mm

Weight

3200kg
