Features:

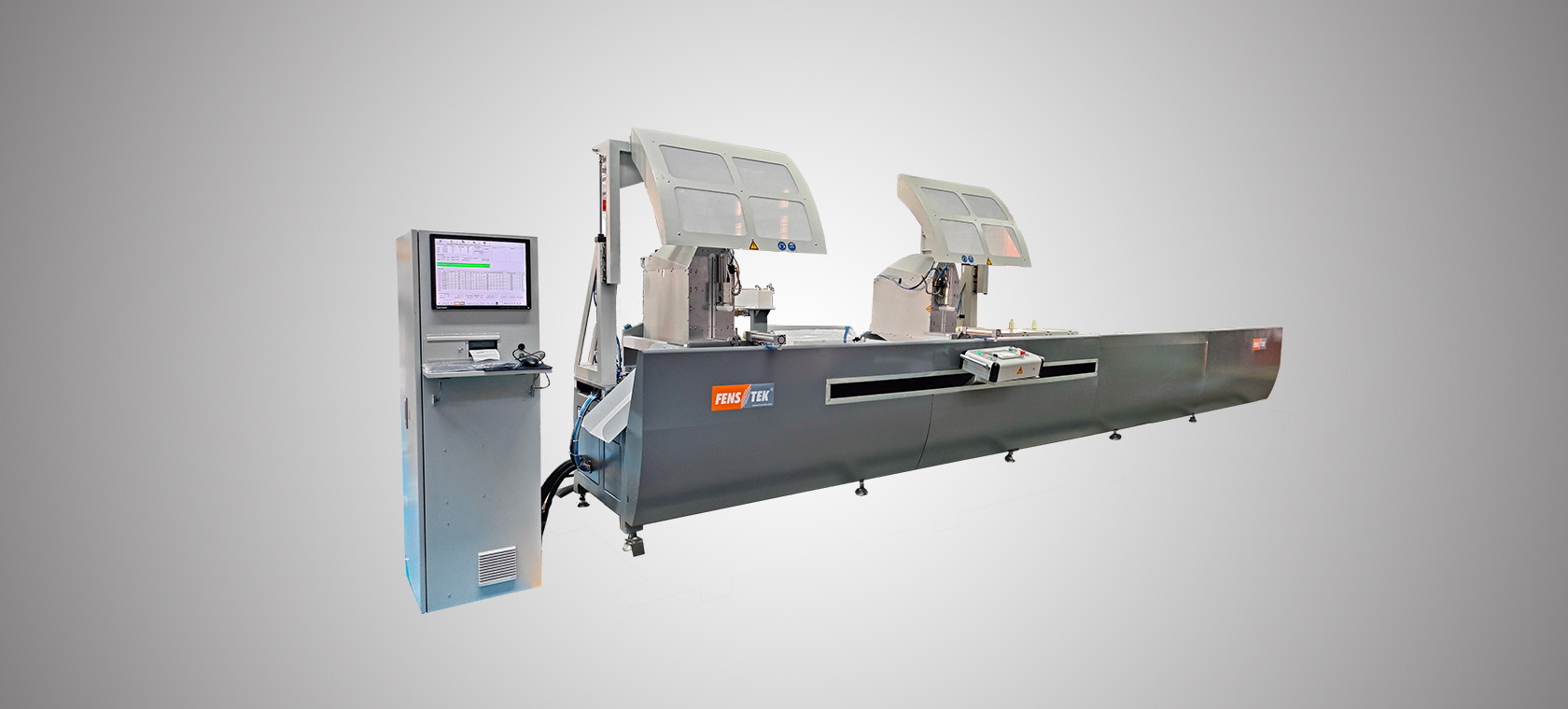

1. Arbitrary Angle CNC Double Head Cutting Saw The machine adopts Europe model with neat appearance and good style.
2. Three Axis CNC cutting saw.
3. The machine adopts Europe model with neat appearance and good style.

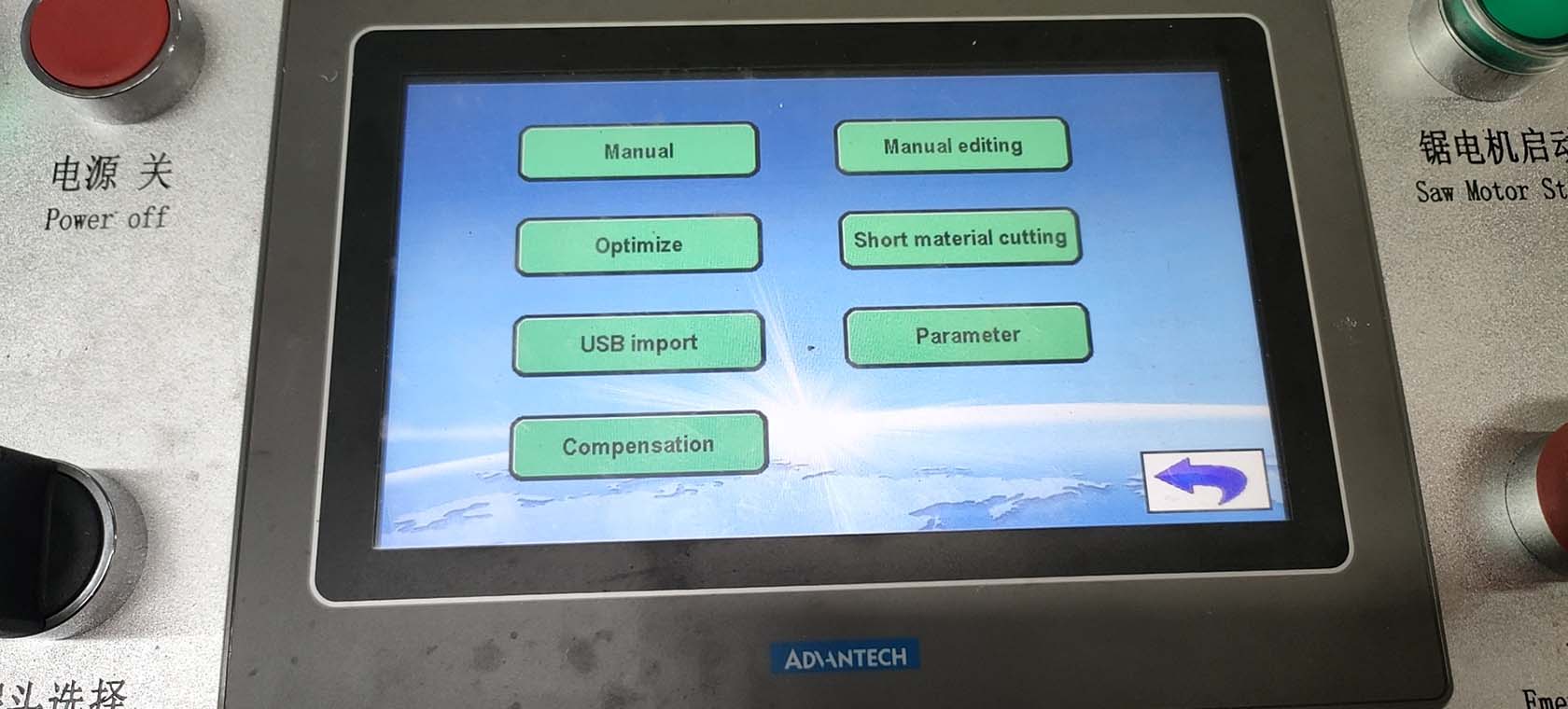

4. The control system adopts the new closed-loop system.
5. The directly connected blade adopts Lever-swing cutting type.
6. The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.
7. The imported control system can ensure the cutting quality.

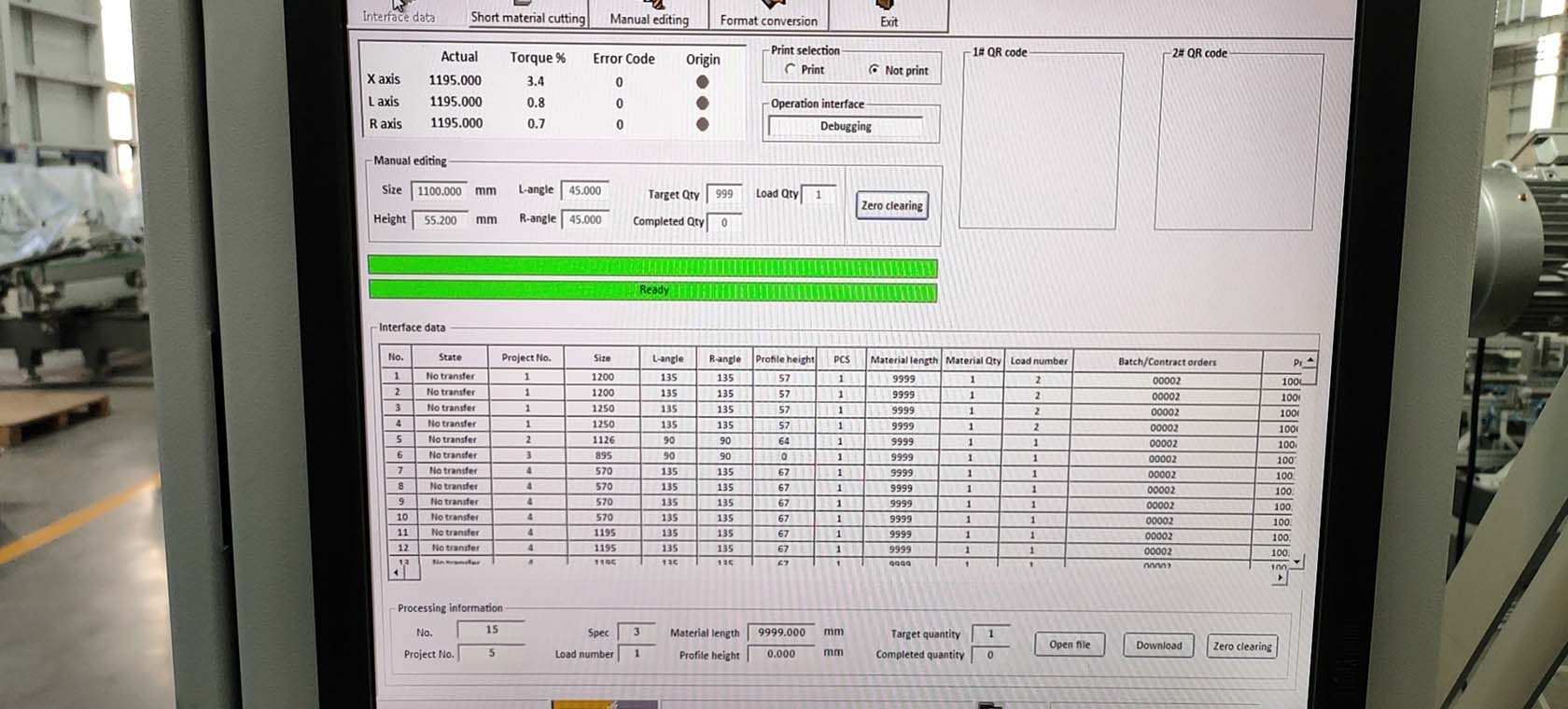

8. Several profile-processing dimensions can be input one time and make continuous cutting.
9. The processing dimension can be directly input; the cutting length can be changed without returning the reference point.
10. The air proof device under the worktable has wonderful crumbs-clearing effect.
11. The following saw cover keeps it working in the clean environment.
12. The stuff follow-up supporter can reduce the machine space.

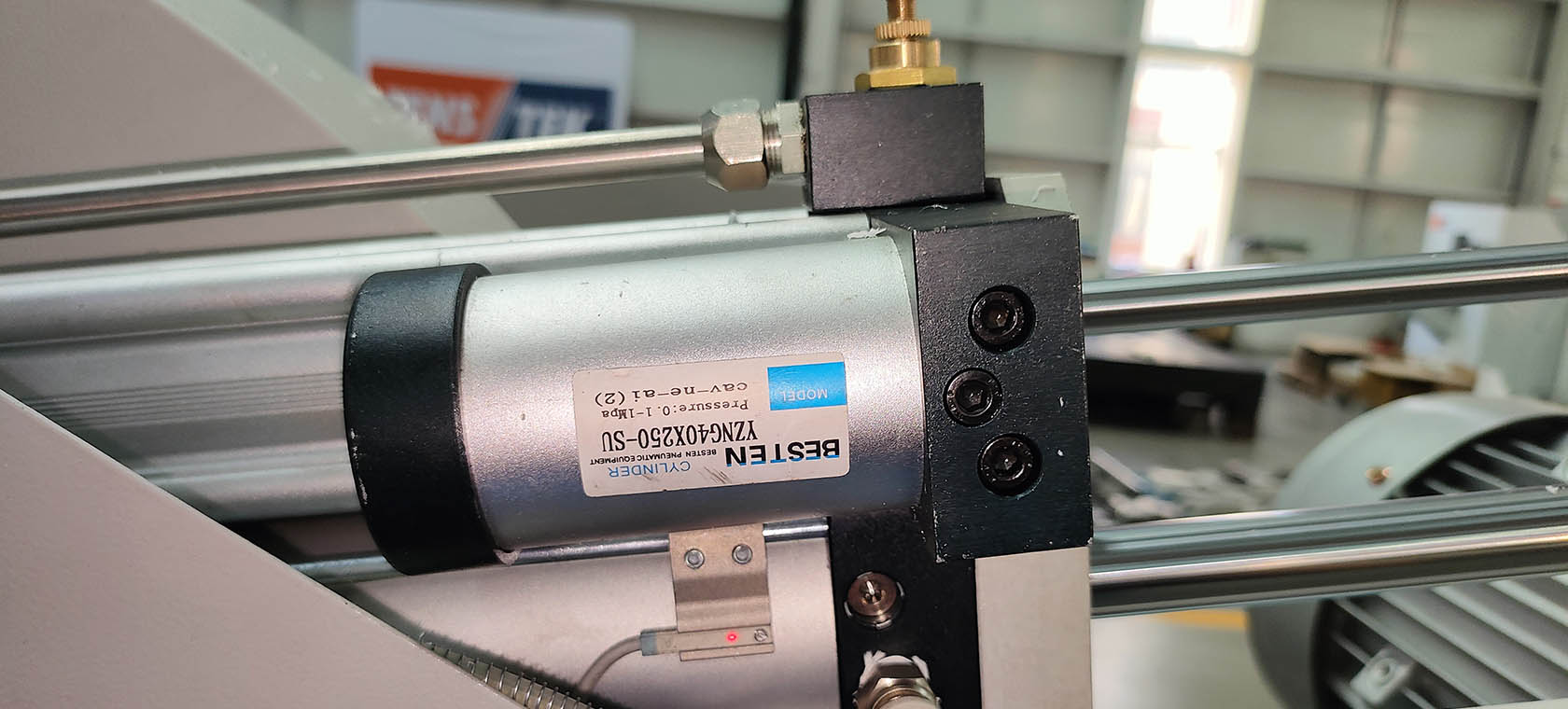

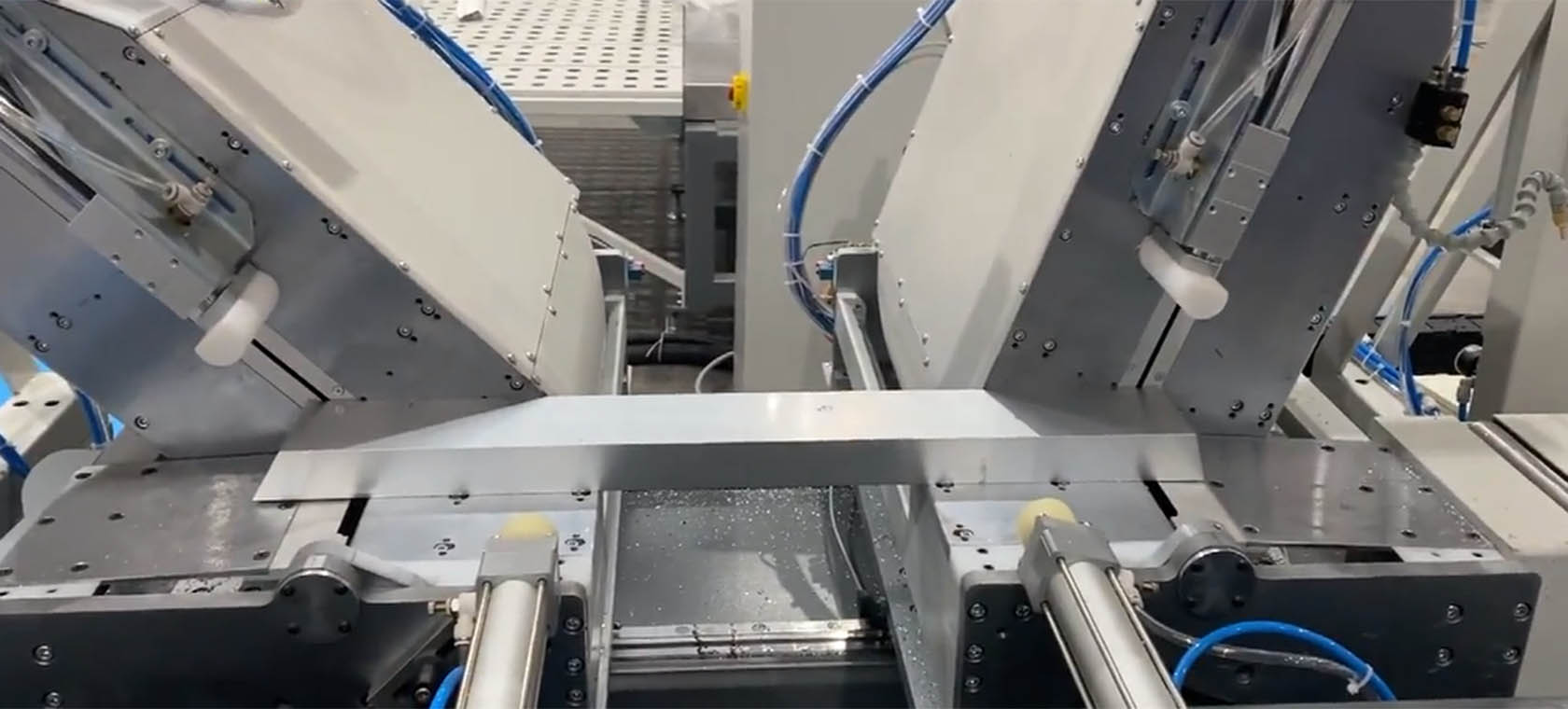

13. The profile was clamped by two cylinders in every head, and kept the cutting security.

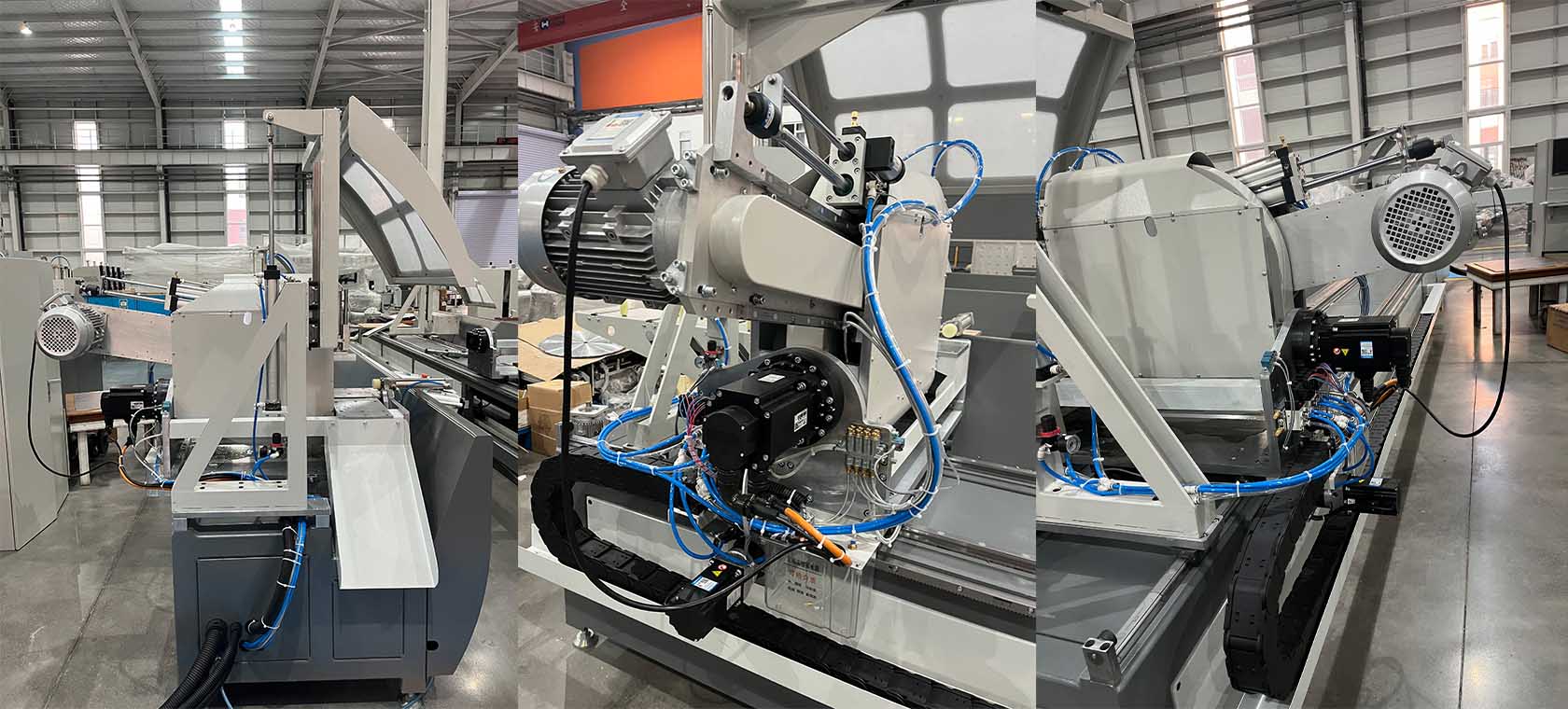

14. The servomotor drives the speed reducer to adjust the cutting angle in 45 degree inward to ~45° outward.

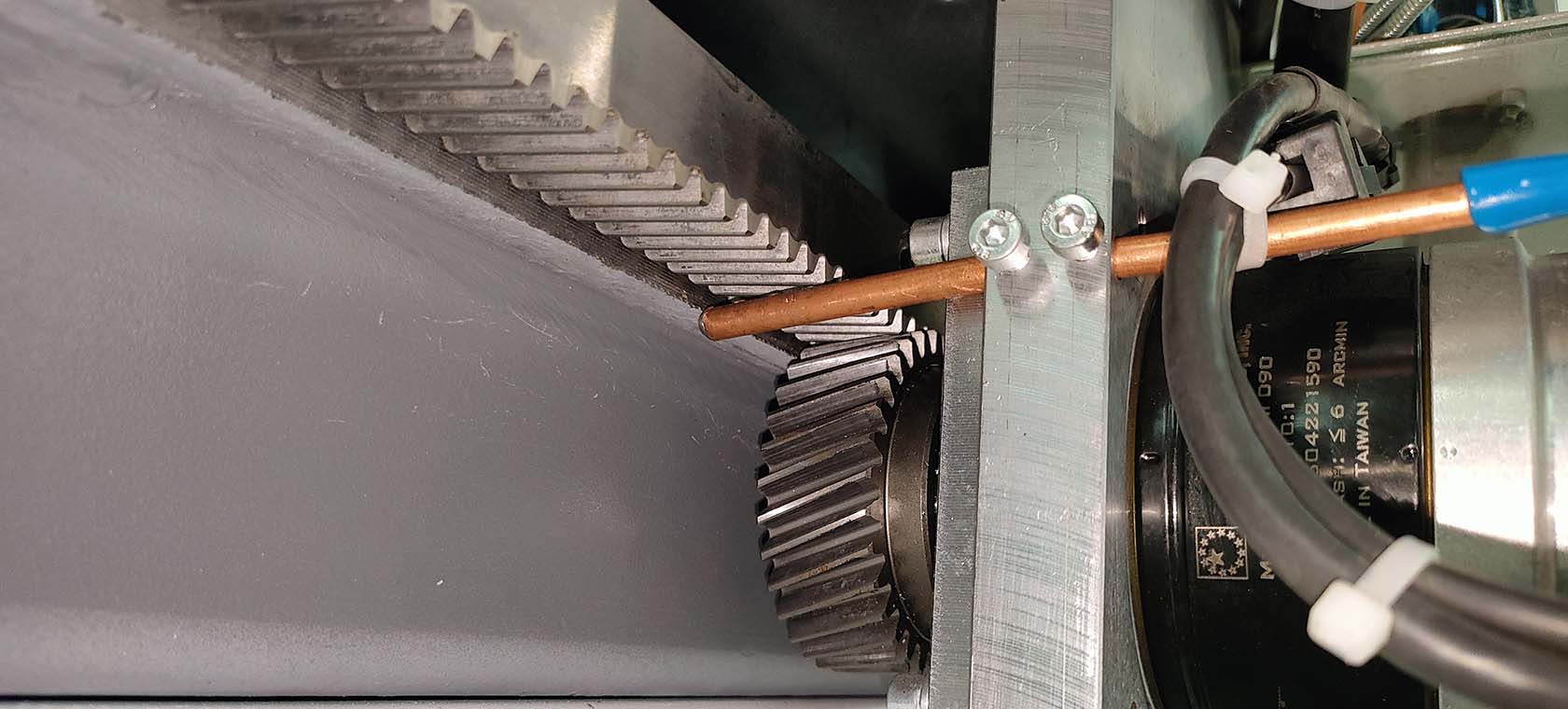

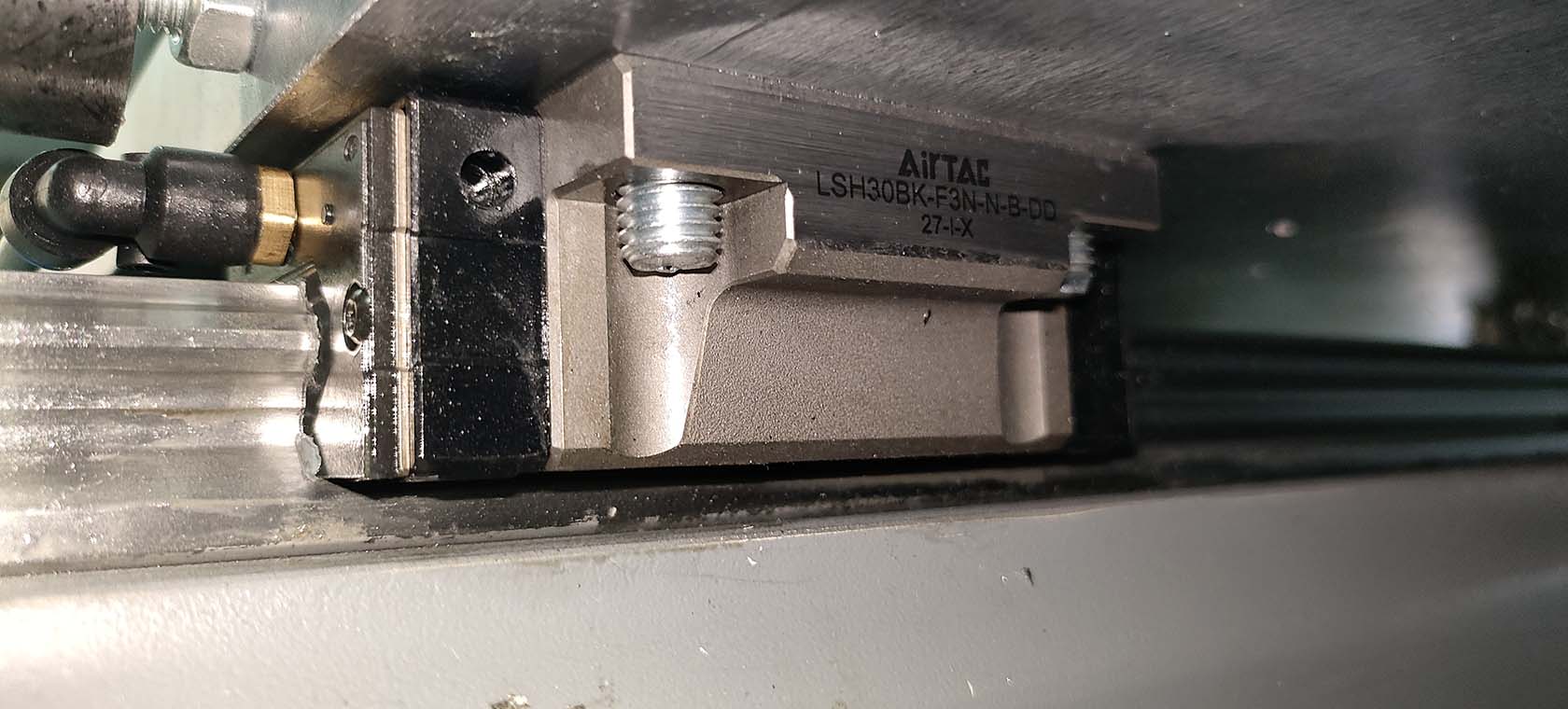

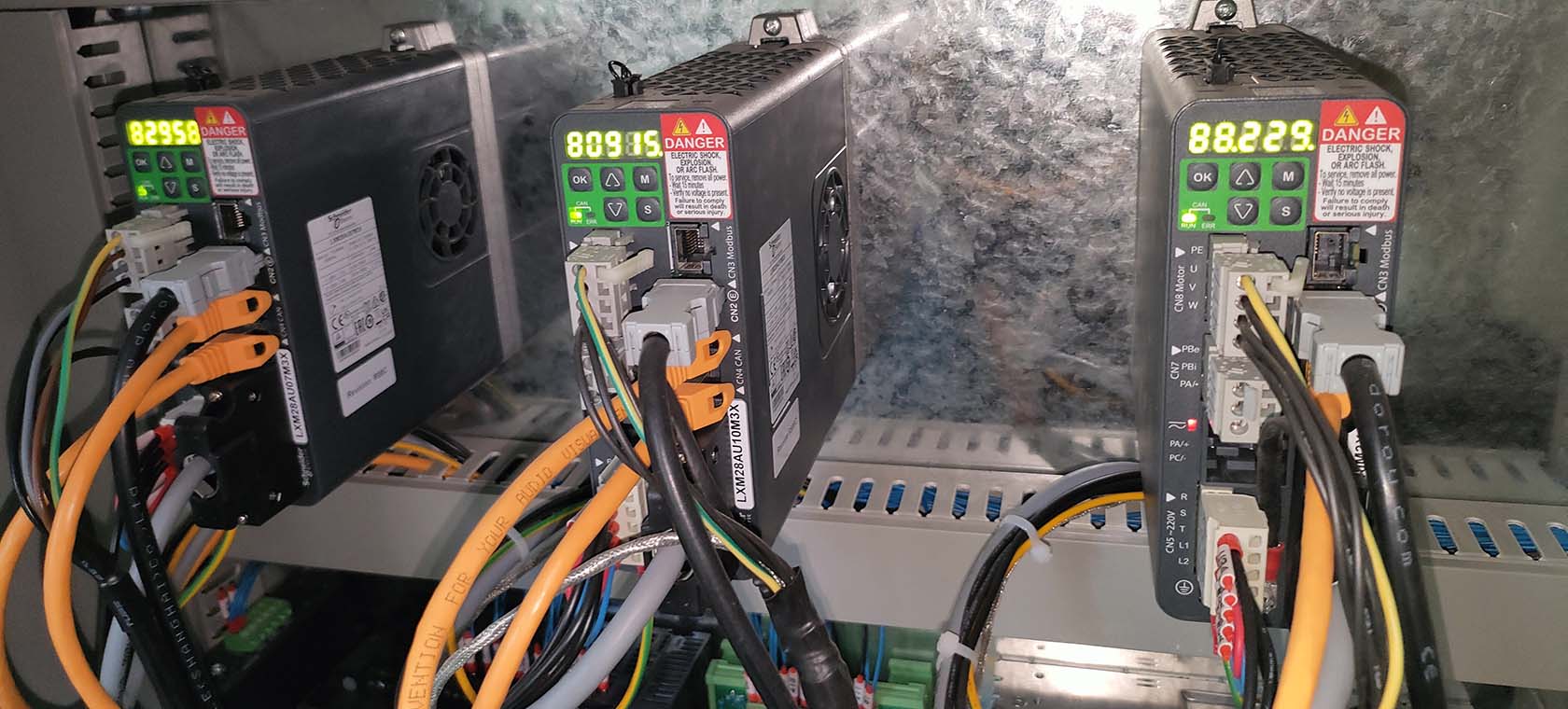

15. The saw head uses the gear rack driven by the imported servomotor with fully closed loop configuration, it ensures that the machine fast movement speed and has high accuracy.
16. Adopting the turntable location technology, high cutting precision.
17. Vertical and horizontal pneumatic clamping to ensure stable profile fixing
18. With two saw head, the left saw head is fixed, the right saw head can move in left and right according to the cut length.

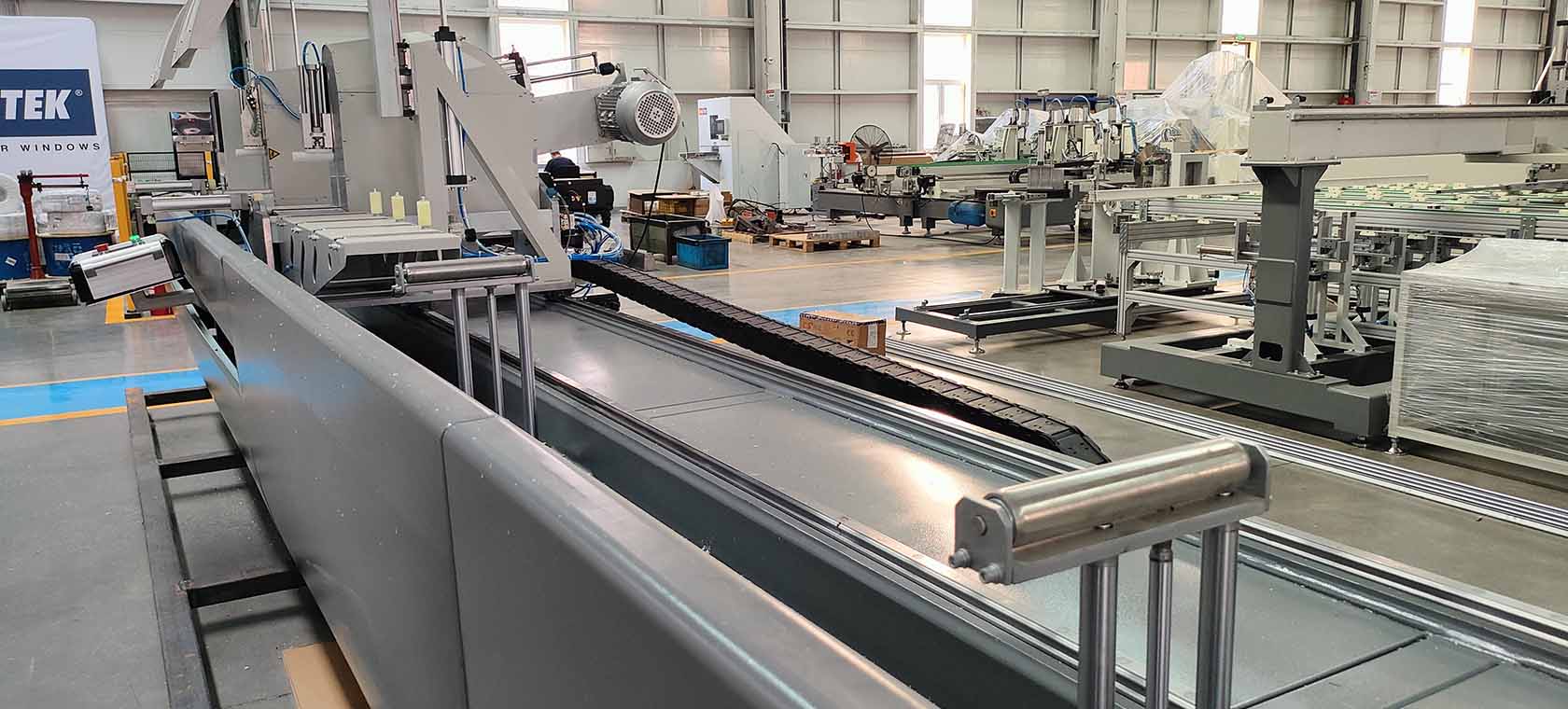

19. With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.
20. The saw head do fixed axis cyclonic feed on the worktable’s vertical side, cutting operation stable and reliable.
Parameter | ||
Power Supply | 380V 50Hz or As Customer Specification | |
Cutting Motor Power | 2*4.0kW | |
Motor Rotatry Speed | 2800 r/min | |
Saw Blade Diameter | Φ 600 | |
Operation Air Pressure | 0.5-0.8MPa | |
Air Consumption | 70L/min | |
Cutting Length | 460-6000mm at 90° | |
CNC repeated positioning accuracy | ±0.1mm | |

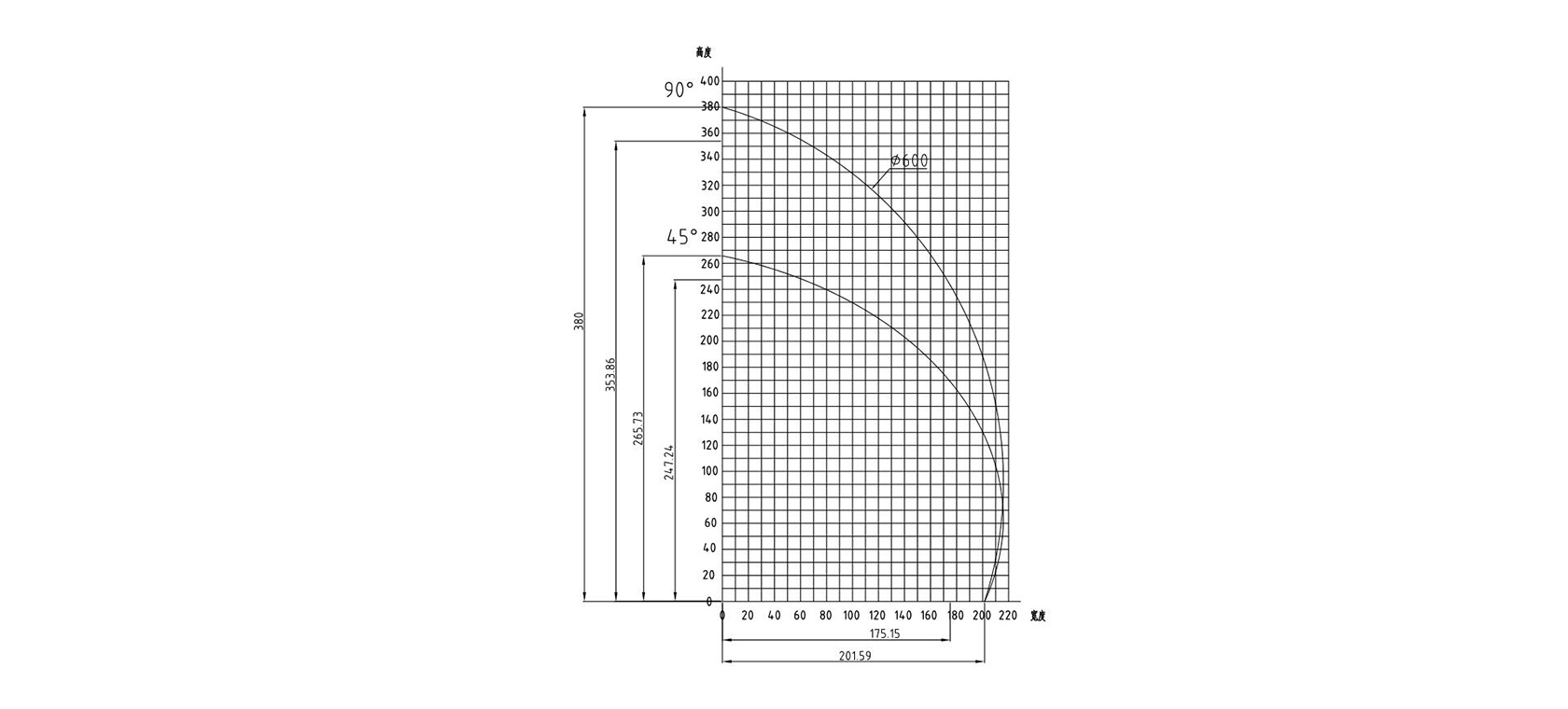

Cutting Range | 280*100mm (width *height) at 90° | |
Cutting Angle | 45°-135° | |
Overall Dimension | 7280mmX1840mmx1760mm | |
Knife feed speed | 0-5m/minutes | |
Main Accessory | ||
Saw blade | Wagen | |

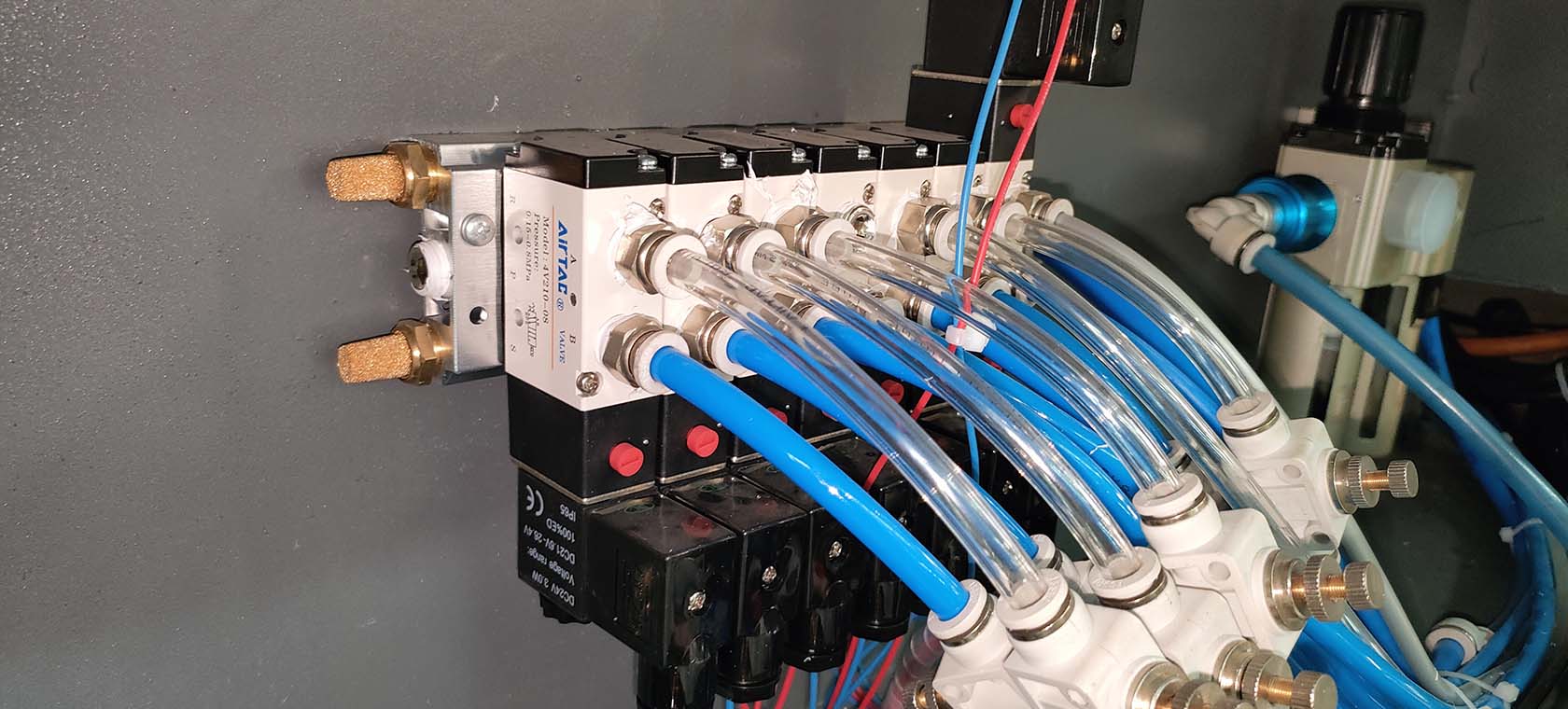

Solenoid valve | AirTAC(Taiwan) | |
Cylinder | AirTAC(Taiwan) | |
Air Filter Device: | AirTAC(Taiwan) | |
Electrical Button and Switcher | Schneider | |
AC Contactor and Circuit Breaker | Schneider | |
Approach Switcher | Swiss CONTRINEX or Japan Omron |
