QUATTRO-V

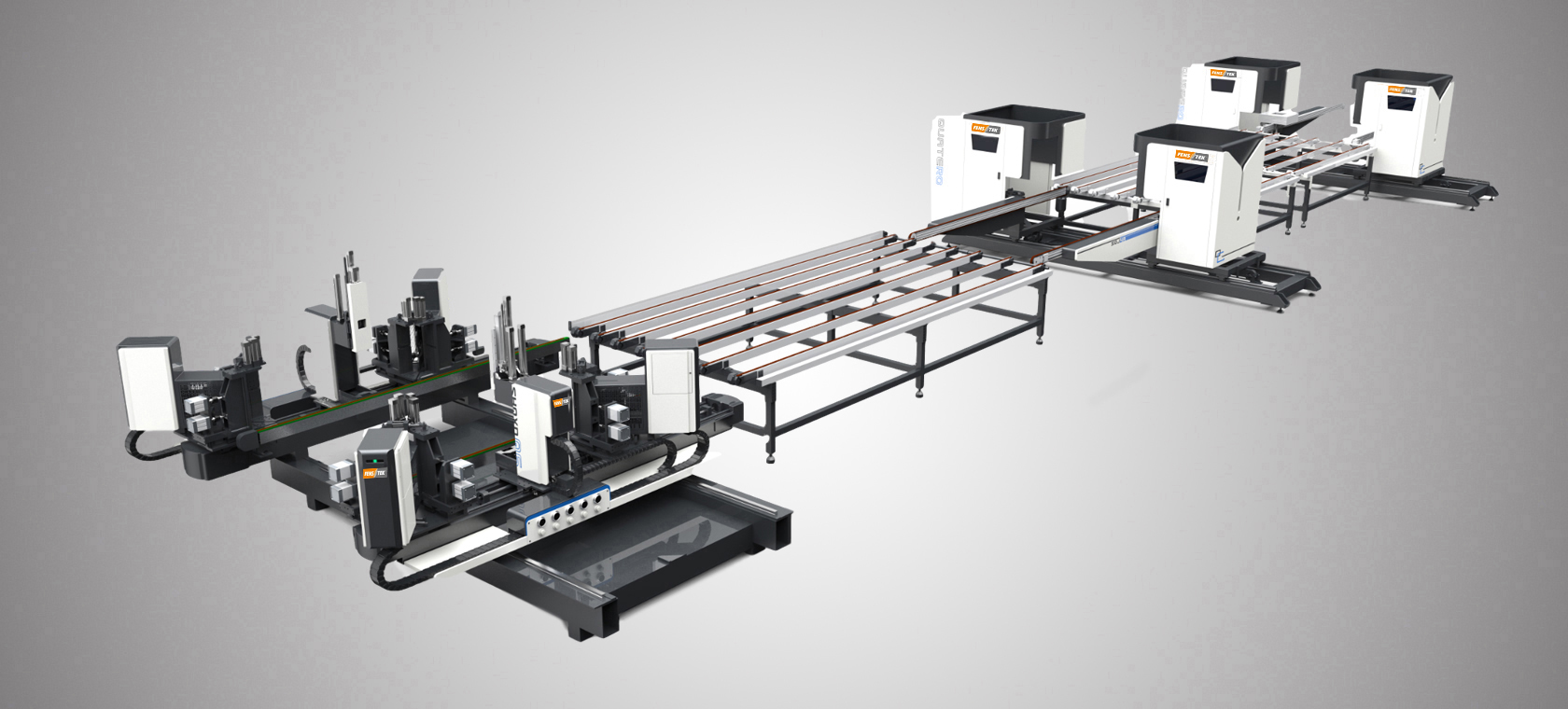

UPVC Window Automatic 6 Point Welding/Cleaning Production Line

Features:

Whole Machine

1. Used for automatically realizing the welding and cleaning of frame or sash, composed of welding unit, transfer unit, manipulator and corner cleaning unit, etc.

2. 0.2mm & 2mm welding auto change through switcher.

3. Imported computer control system, with high reliability.

4. Production ability between main units matched each other.

5. Automatically program and select processing programs.

6. Apply to high grade and mass windows production.

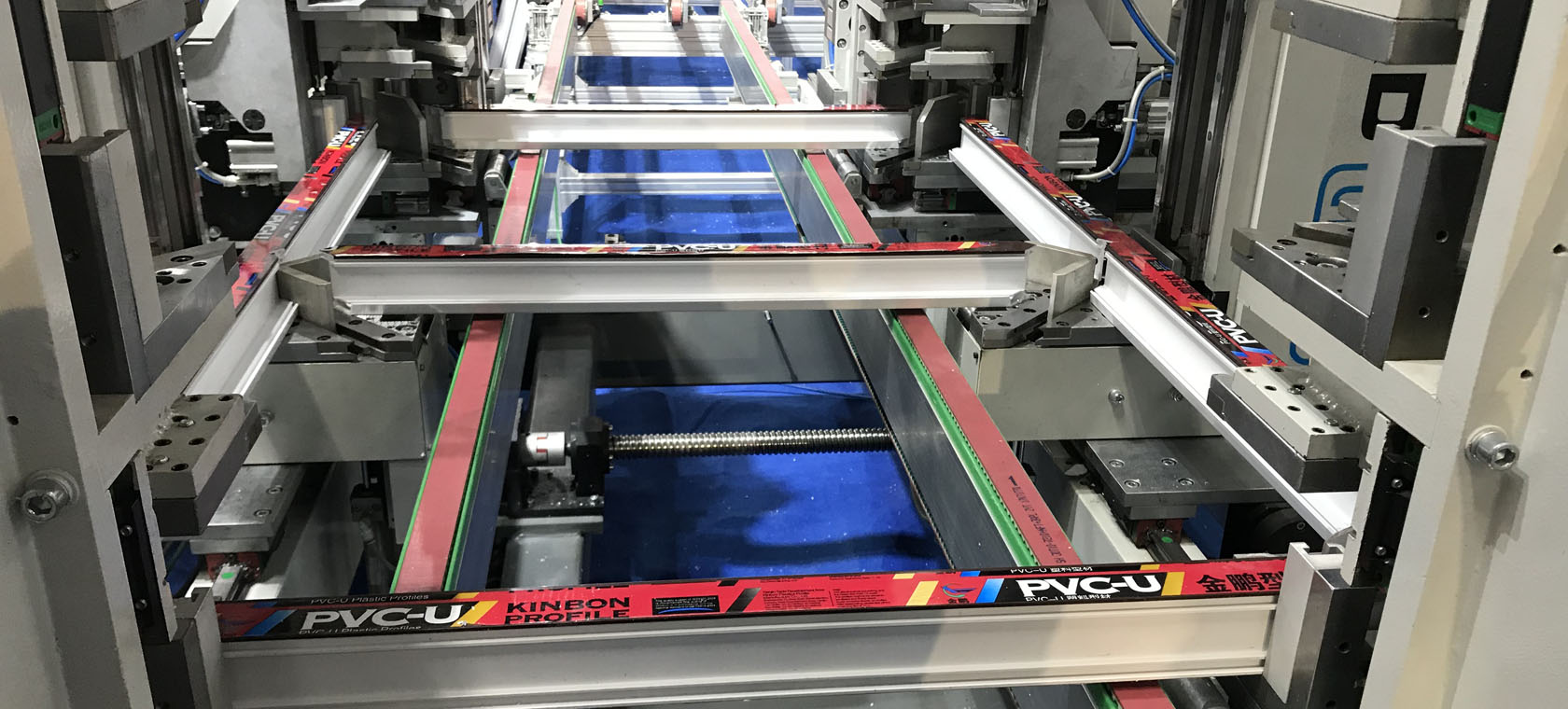

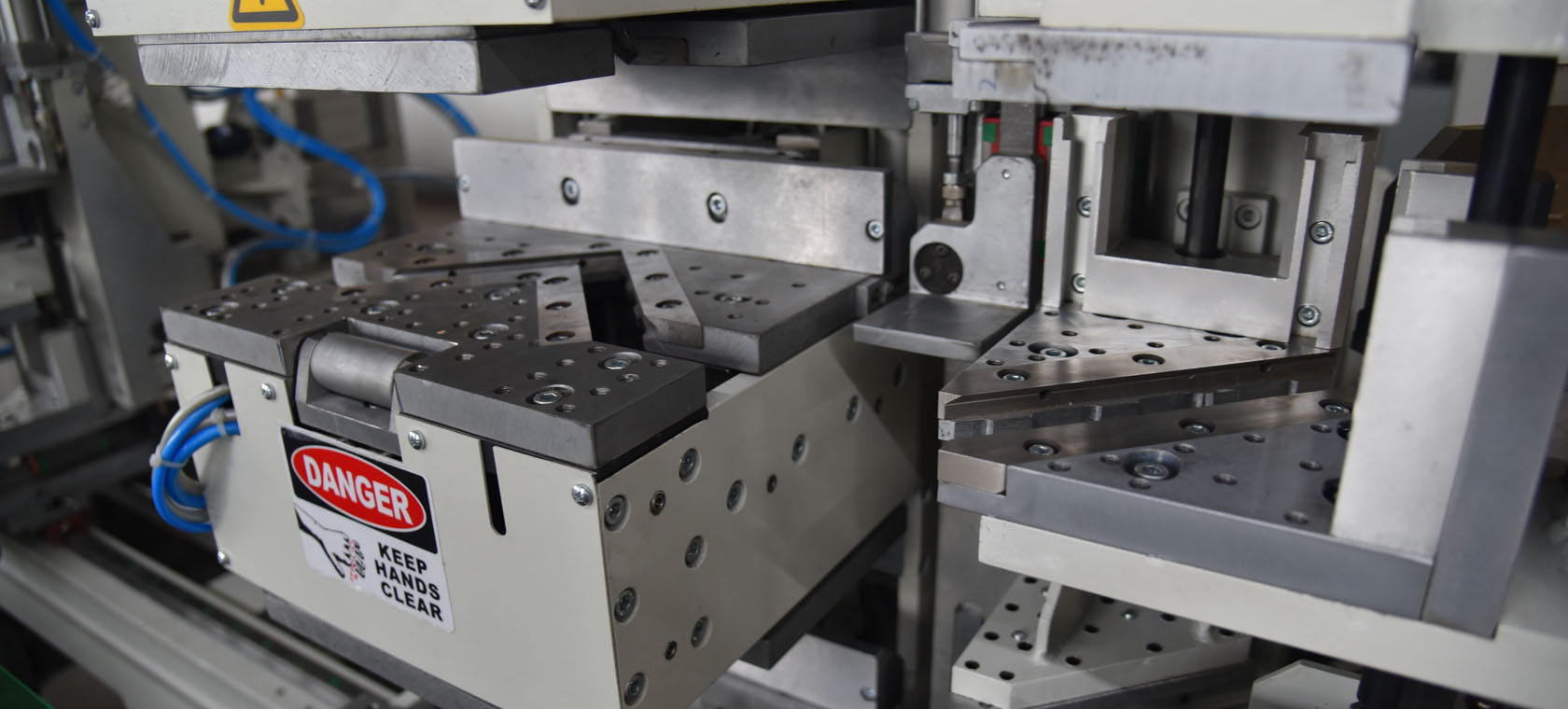

Welding Unit

1.Horizontal structure arrangement for the stable running.

2.6 corners welding at the same time, including the mullion welding.

3.Imported computer drive system ensured its high stability.

4.Size error compensation is available and high accuracy.

5.Special locating system and impaction device ensured its size precision.

6.Strengthen the corner welding and achieve good corner cleaning effect.

7.Supporter with proper design keeps the running stable.

8.Auto profile discharging device.

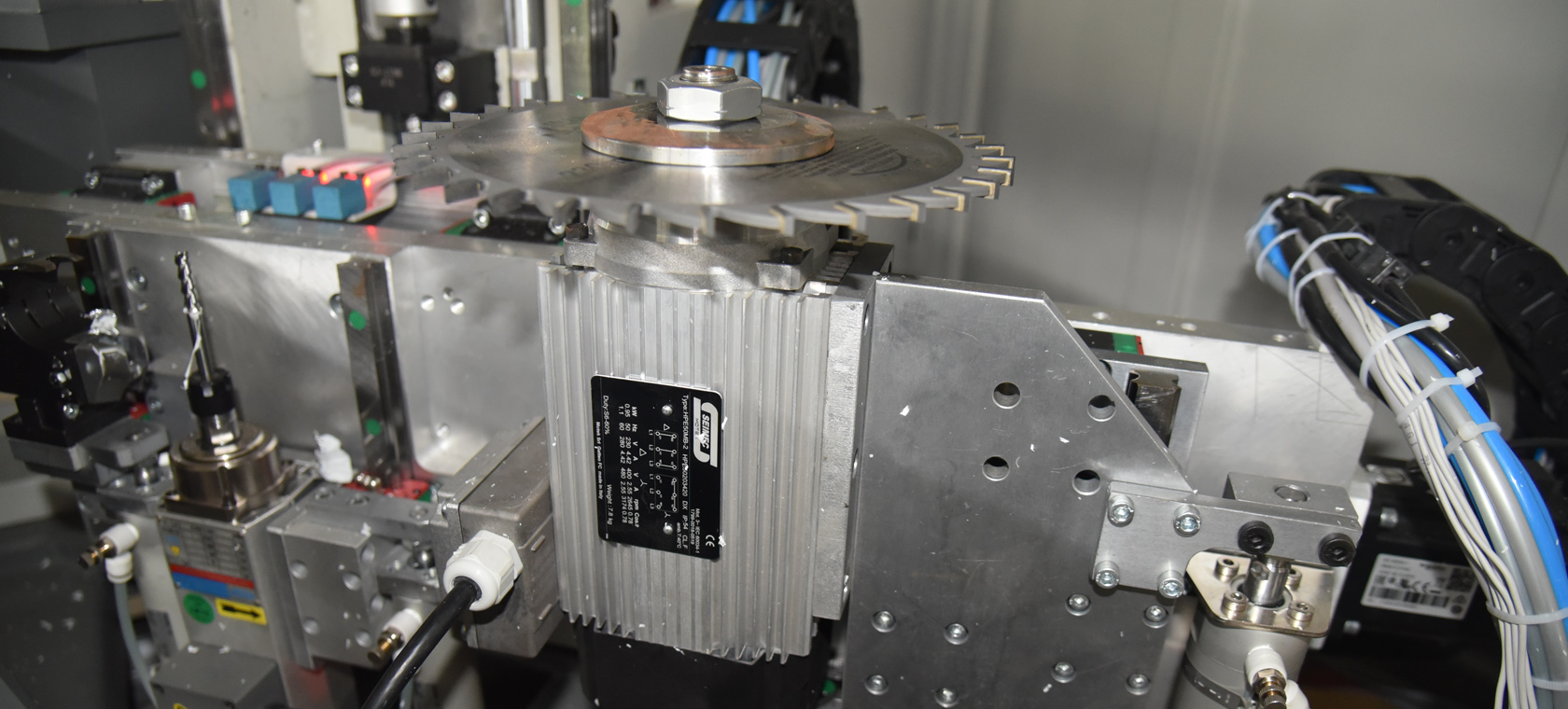

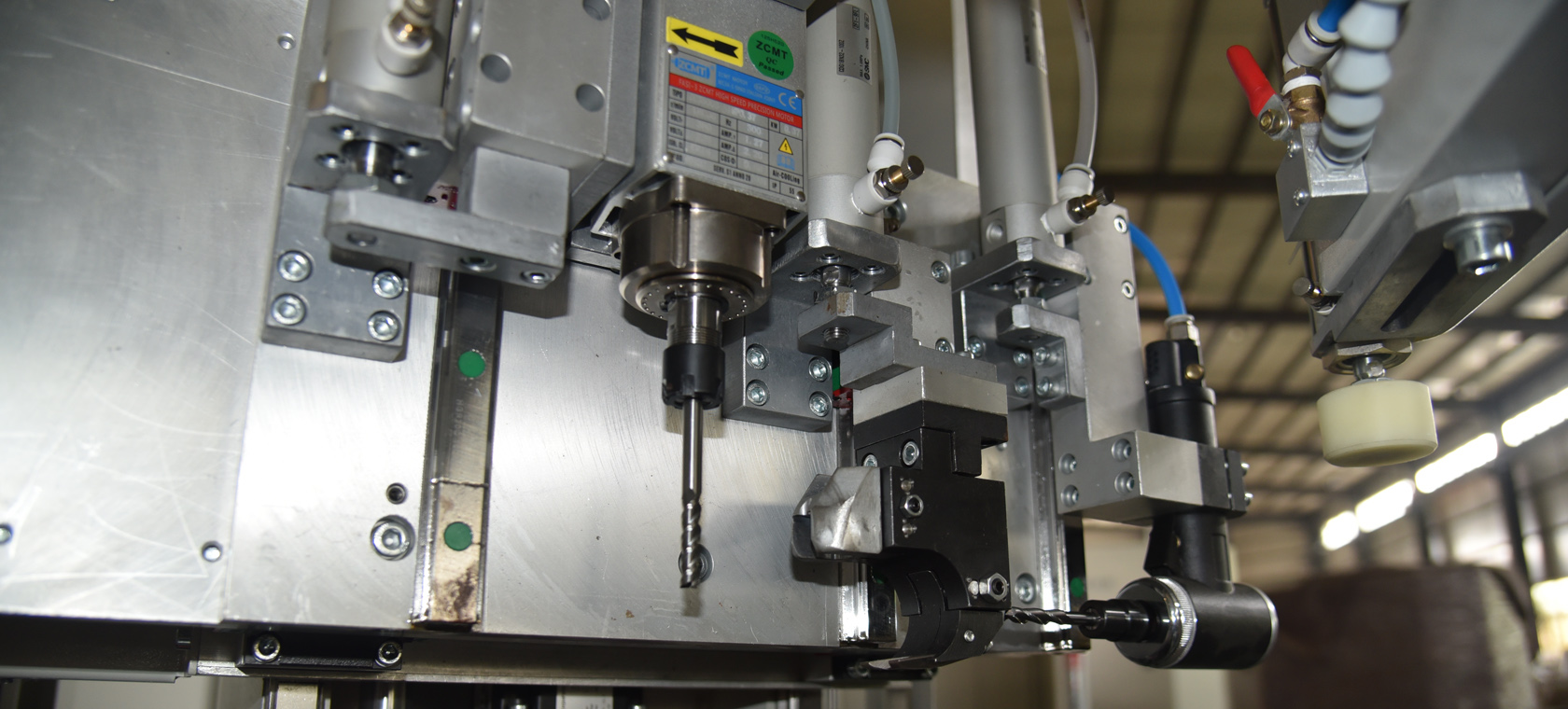

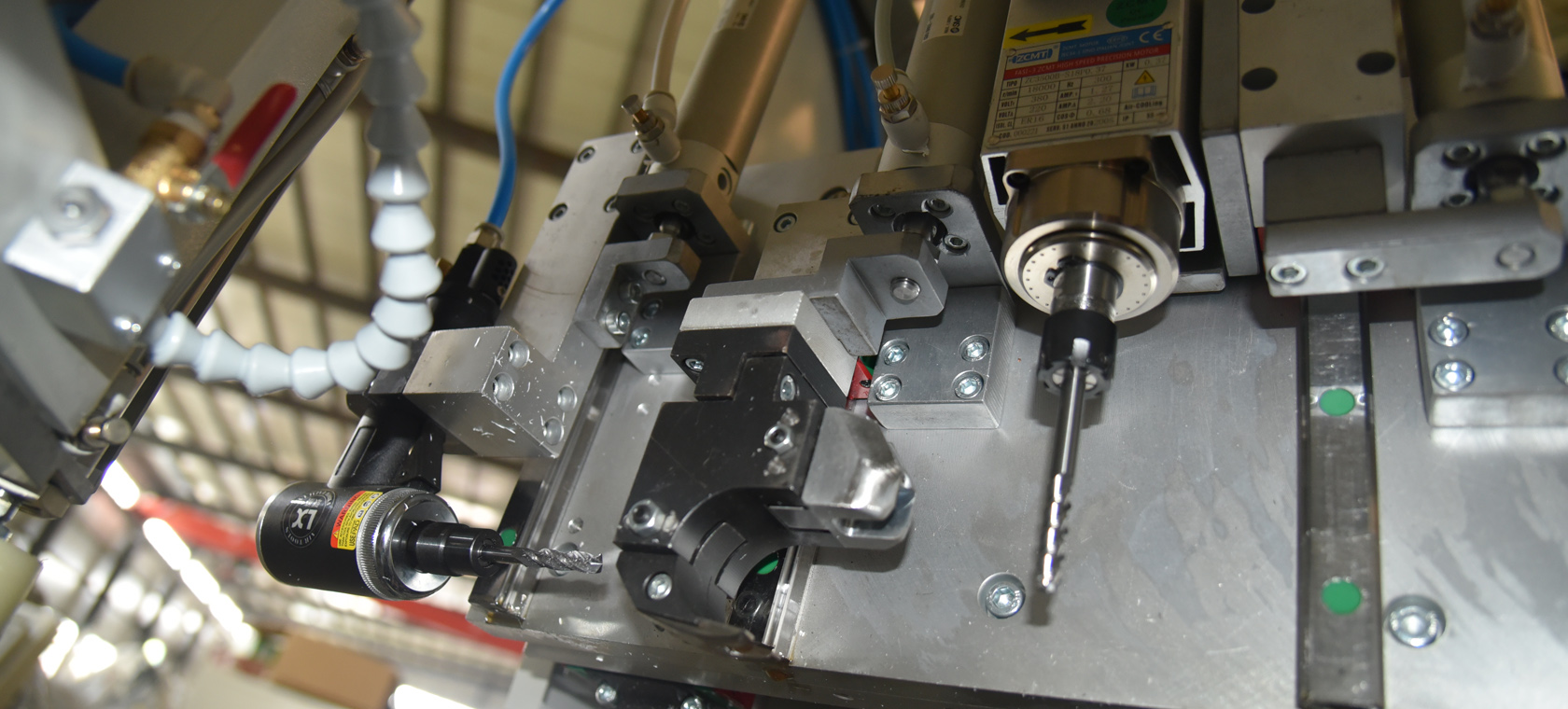

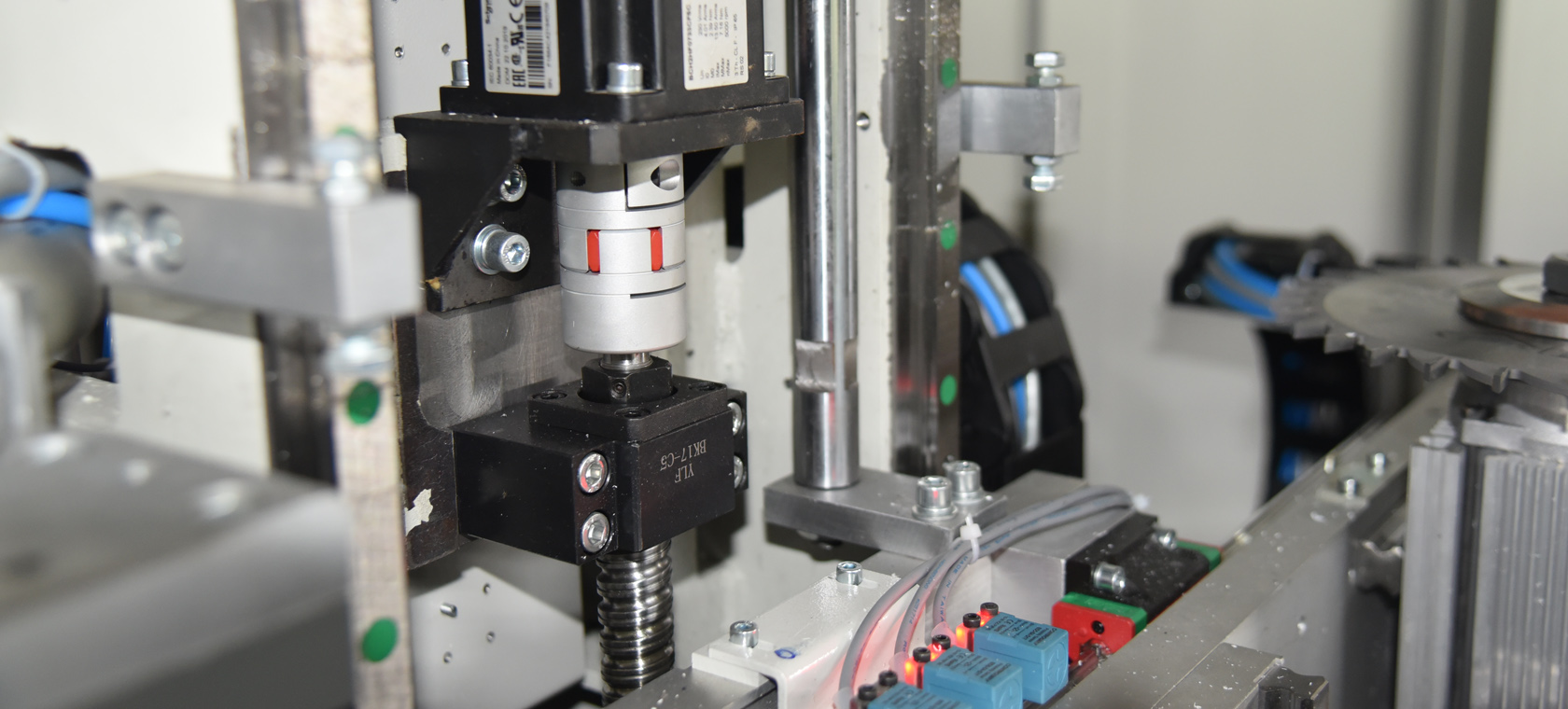

Cleaning Unit

1.Eight groups of different cutters can achieve the cleaning of corner welding,cleaning surface,vertical and inside rubber gasket groove ,horizontal and V welding cleaning.

2. High processing efficiency for adopting four-axis servo-drive system.

3. Imported computer system and drive system ensured its high reliability.

4. Cutters with unneeded change can process more than one hundred profiles.

5. Error compensation between arc and beeline is possible and good cleaning appearance given.


Transfer Unit & Manipulator

1. Transfer unit: used for automatically conveying the frame or sash after welding.

2. Manipulator: used for transferring the frame or sash to the precise position.

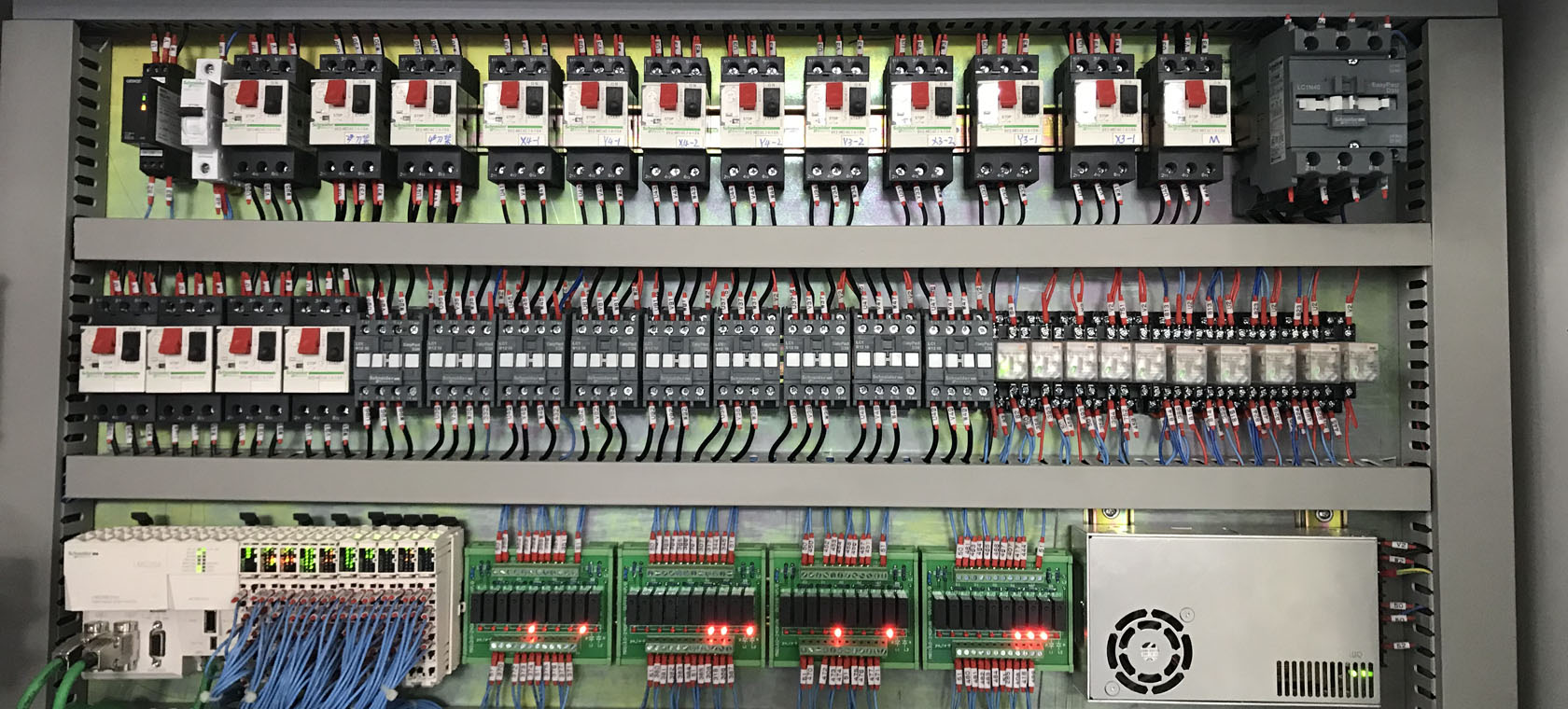

 Main accessory


 Controlling system

 Schneider or other word famous system

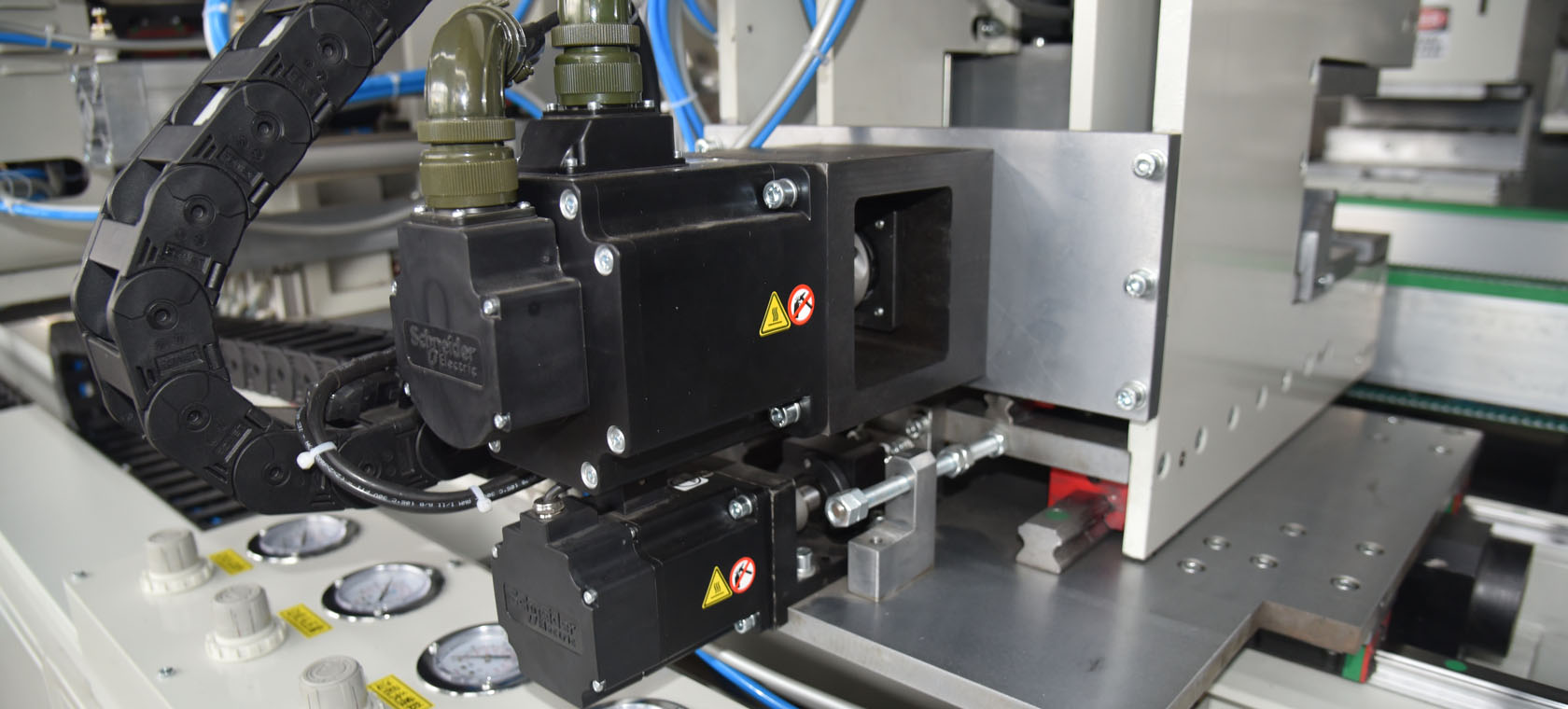

 Servo Motor

 Schneider or other word famous   system.

 Solenoid valve

 Airtac

 Cylinder

 Airtac

 Air Filter Device

 Airtac

 Electrical Button and Switcher

 Schneider

 AC Contactor and Circuit Breaker

 Schneider

 Approach Switcher

 Swiss CONTRINEX or Japan Omron

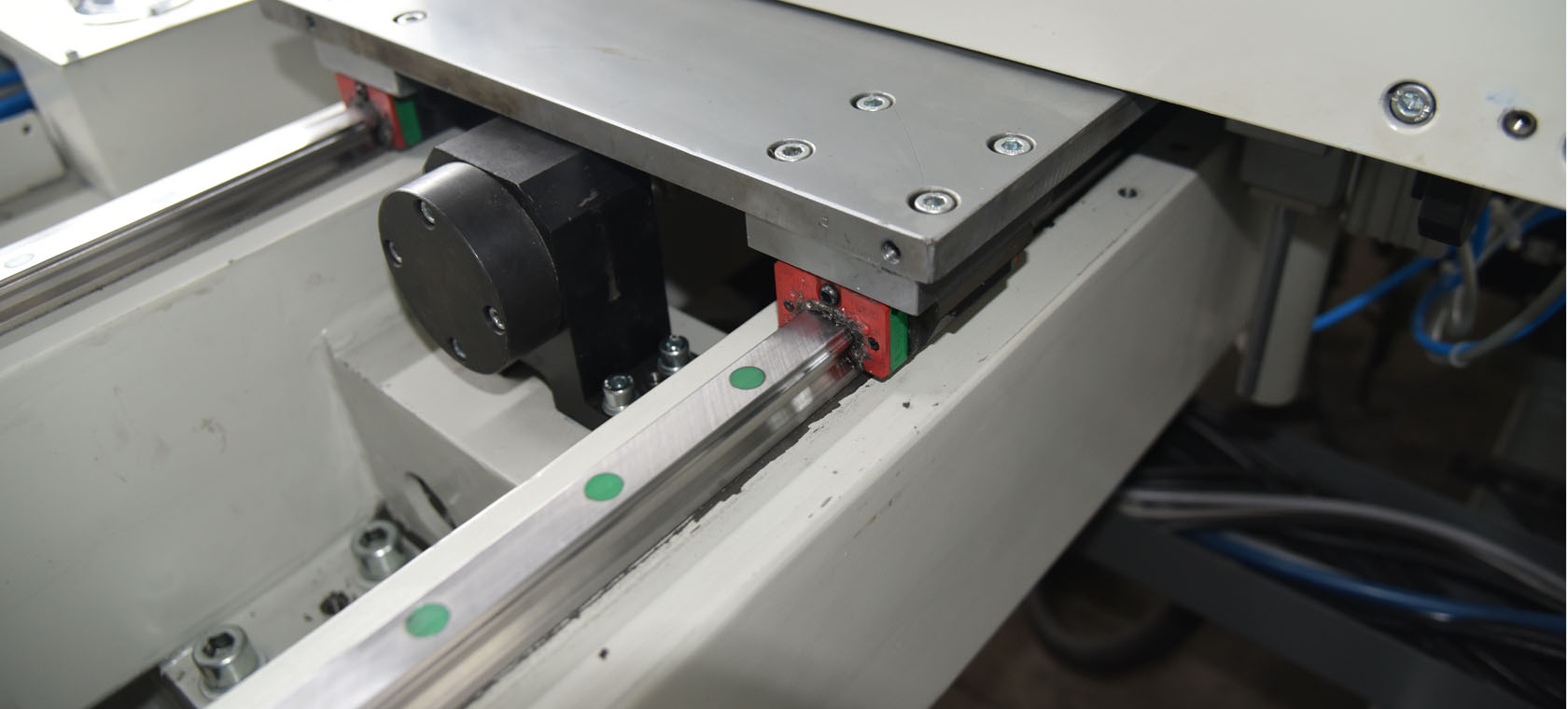

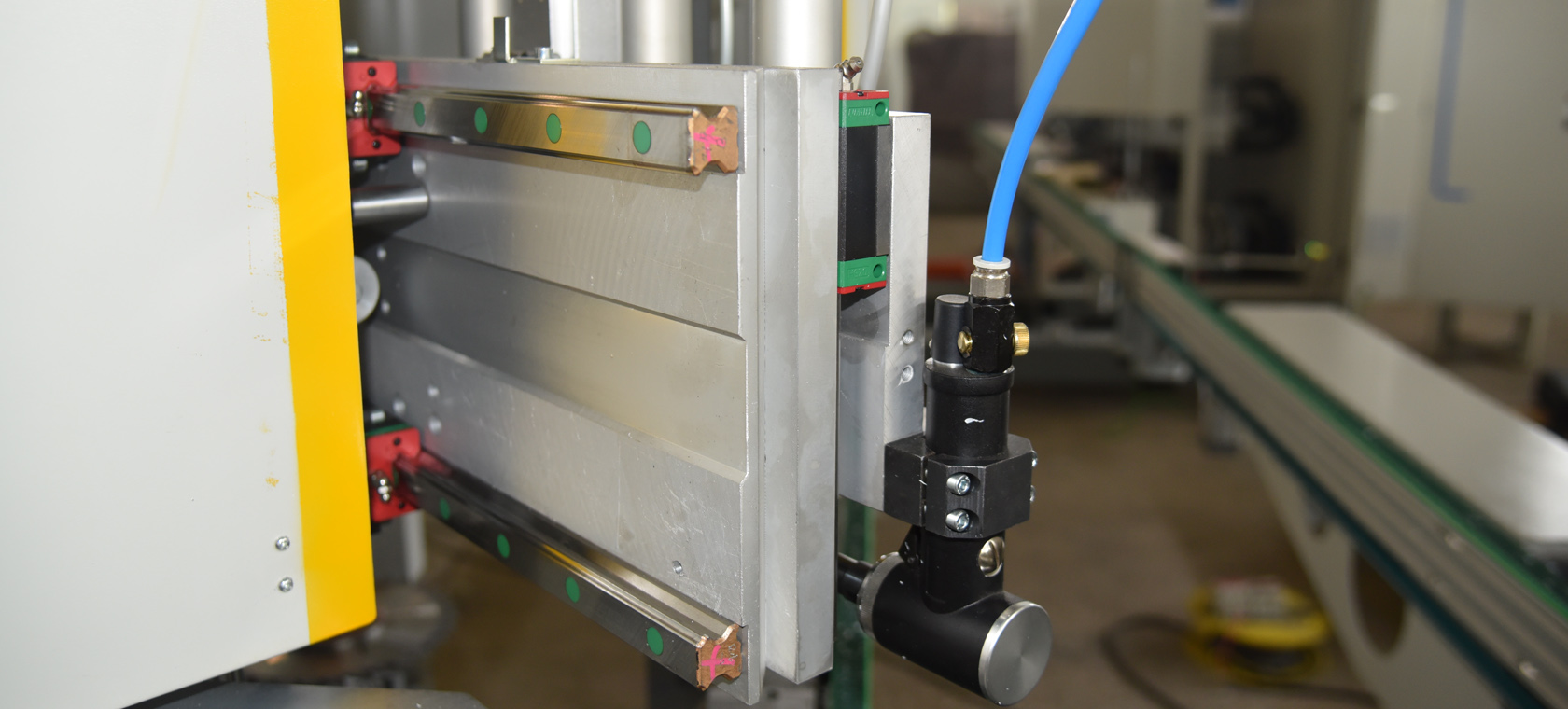

 Linear bearing system

 Linear (South Korean brand)

 Temperature Controller

 Japan Omron

 Saw blade

 Japan UNIKEN

 Motor

 Anhui Sanyang (Best Chinese Motor   Brand)

 Controlling System

 Schneider

 Servo Driver

 Schneider

 Operation pane

 Taiwan ANC

 Parameters


 Input Voltage

 3N~50Hz   380V/220V

 Input Power

 32/37(kw)

 Operation Air Pressure

 0.5~0.8(MPa)

 Air Consumption

 700(L/min)

 Welding Height

 25~160(mm)

 Welding Width

 120(mm)

 Welding Range

 500×680~2800×2600 (mm)

 Overall Dimension

 21000×5550×2800(mm)

 Max Cleaning Height

 140mm

 Max Cleaning Width

 115mm
