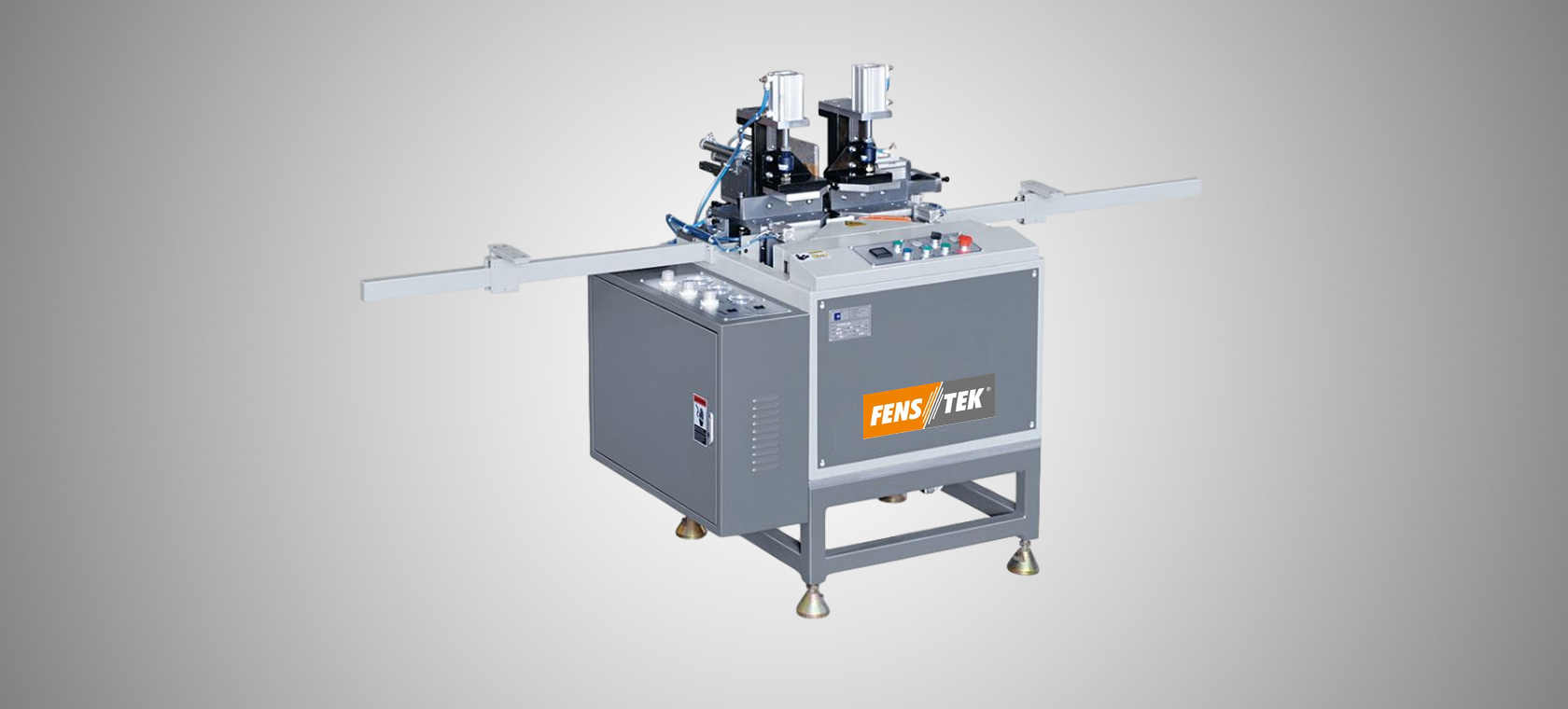

SHJV-120

UPVC Window Reverse Butt Welder

Features:

1.The machine head has two parts of profile butt welding and V-notch cutting, which can complete two functions of profile butt welding and V-notch cutting at one time.

2. It can realize manual feeding before welding, manual pressing and automatic welding and V-cutting process.

3. The use of imported PLC (programmable controller) in the control part greatly improves the operation reliability of the whole machine.

4. The adoption of pneumatic transmission technology greatly improves the operating environment, and is easy to operate and maintain.

5. The adoption of linear bearing enables the machine to maintain sufficient accuracy and service life.

Parameter


Power supply

220V 50Hz

Air Pressure

0.4-0.6MPa

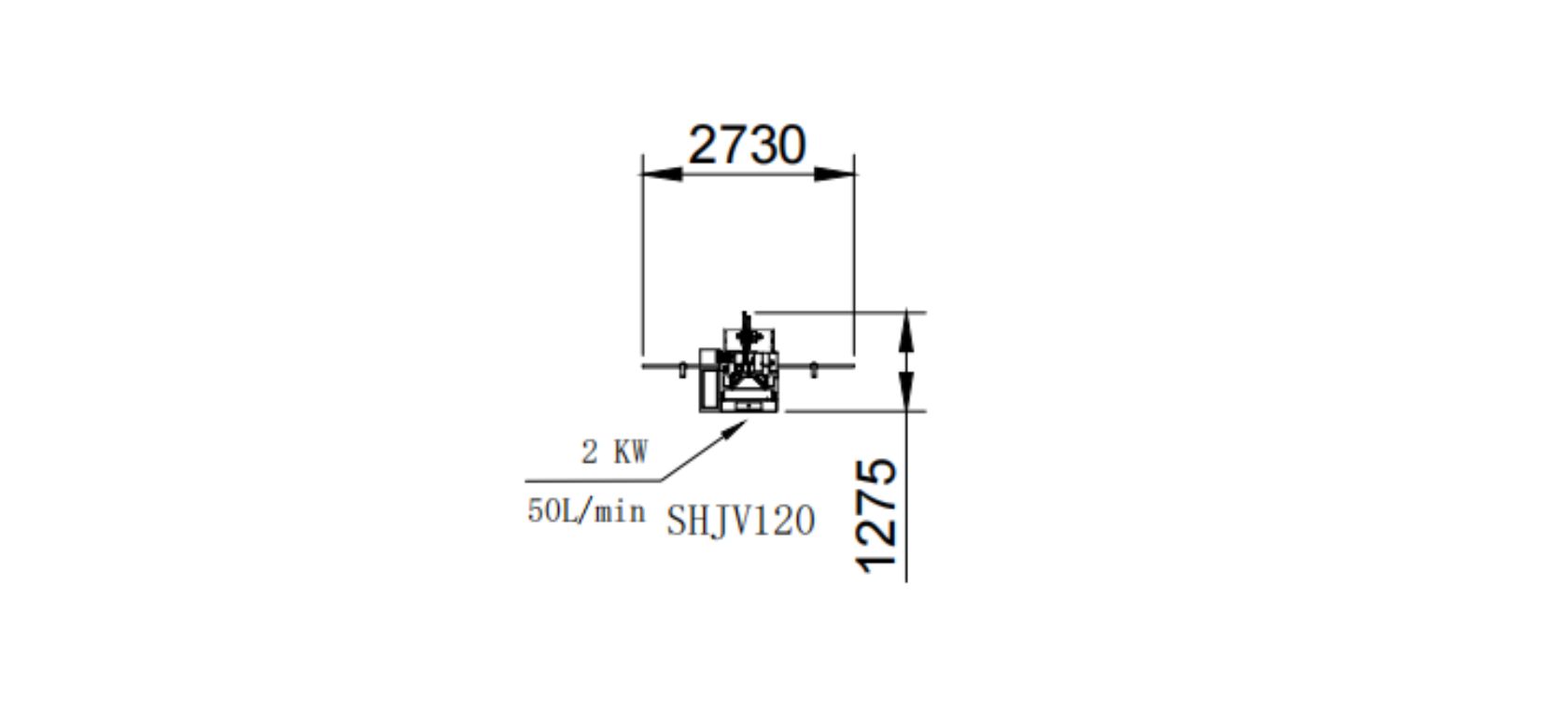

Dimension

2700x1320x1400

Height

35-120mm

Weight

Max 150mm

Input Power

3.1KW

Air consumption

50L/min

Weight

260kg
