AVW3000H

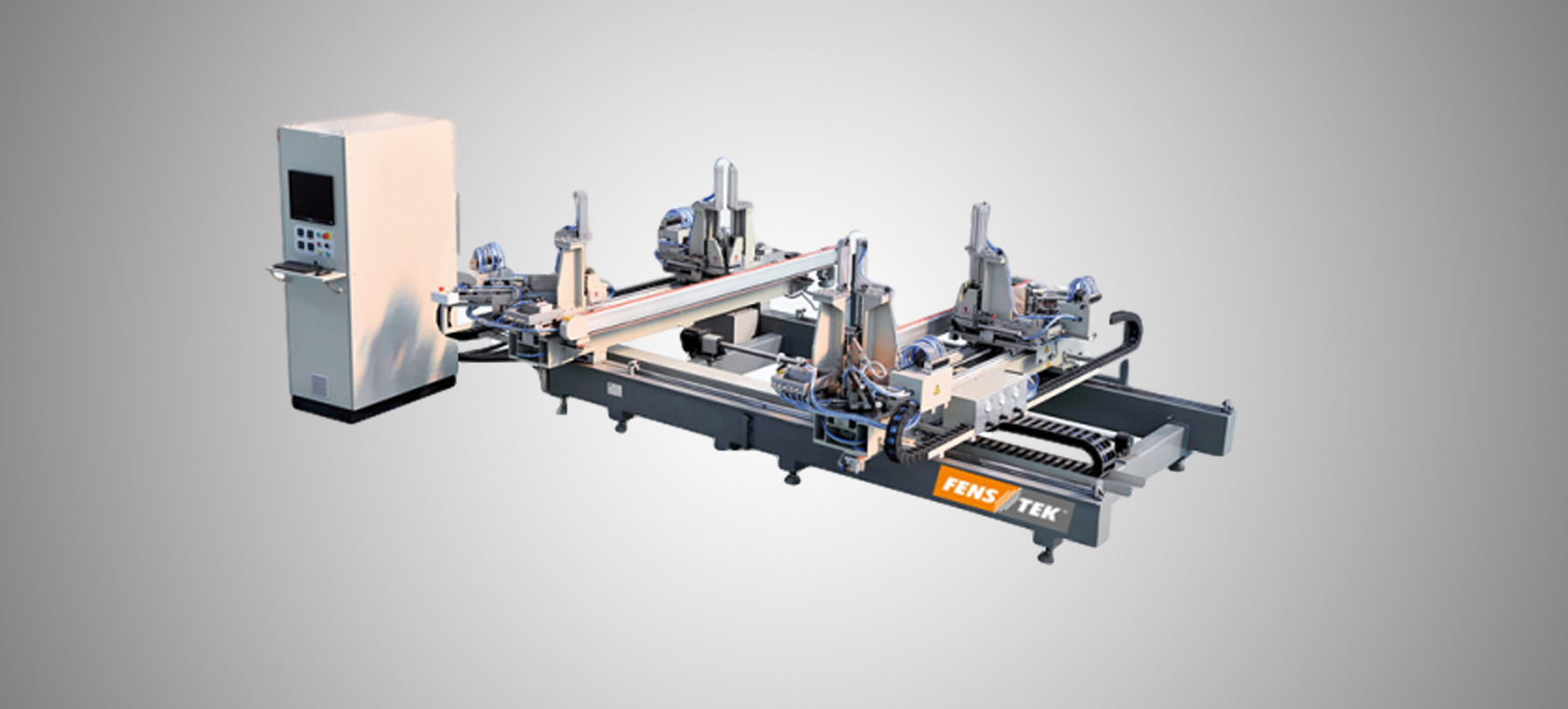

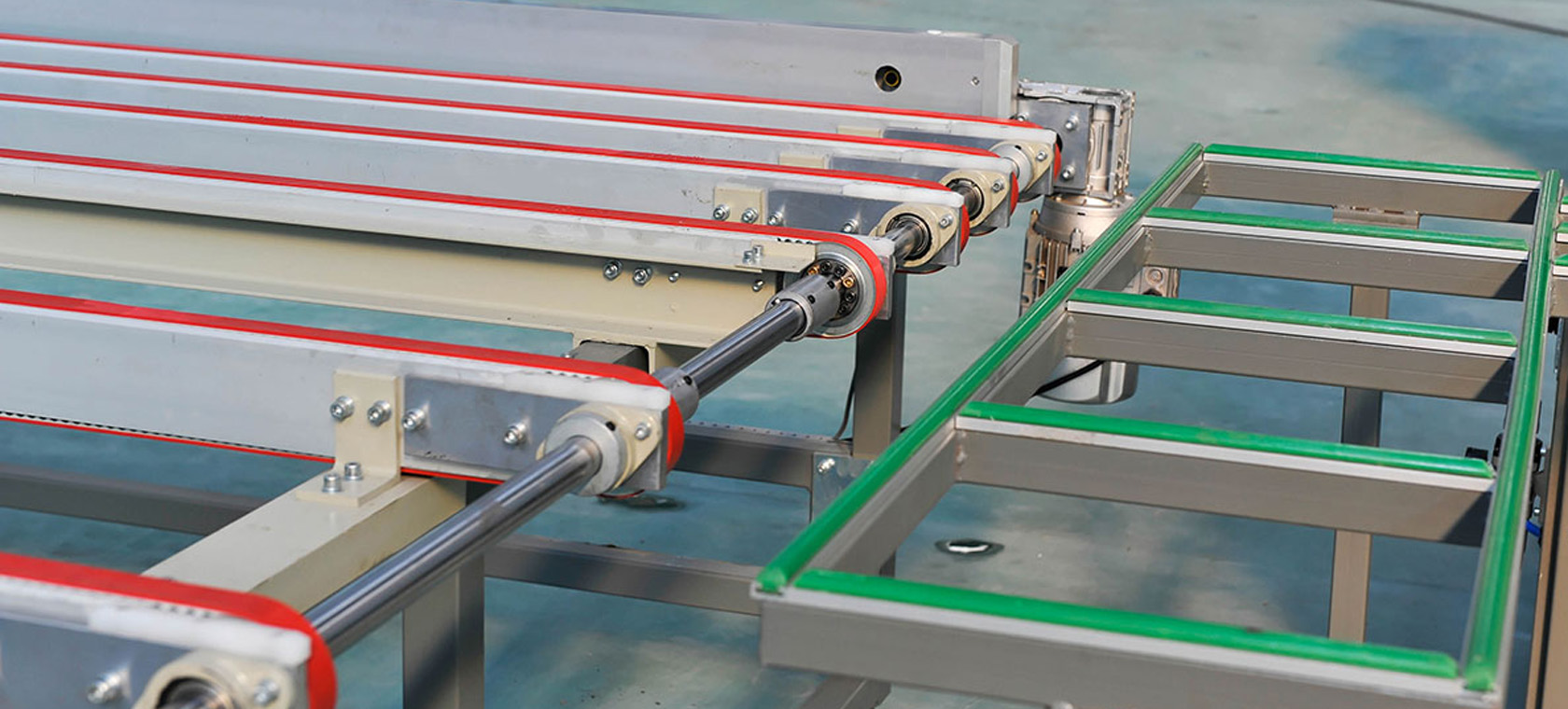

UPVC Window CNC Horizontal 4 Point Welding Machine

Features:

1. Top grade PVC Profile Welding Machine. Suitable for high quality PVC window manufacturer.

2. One working cycle, one frame or sash fully automatically.

3. 0. 2mm & 2mm welding auto change through switcher.

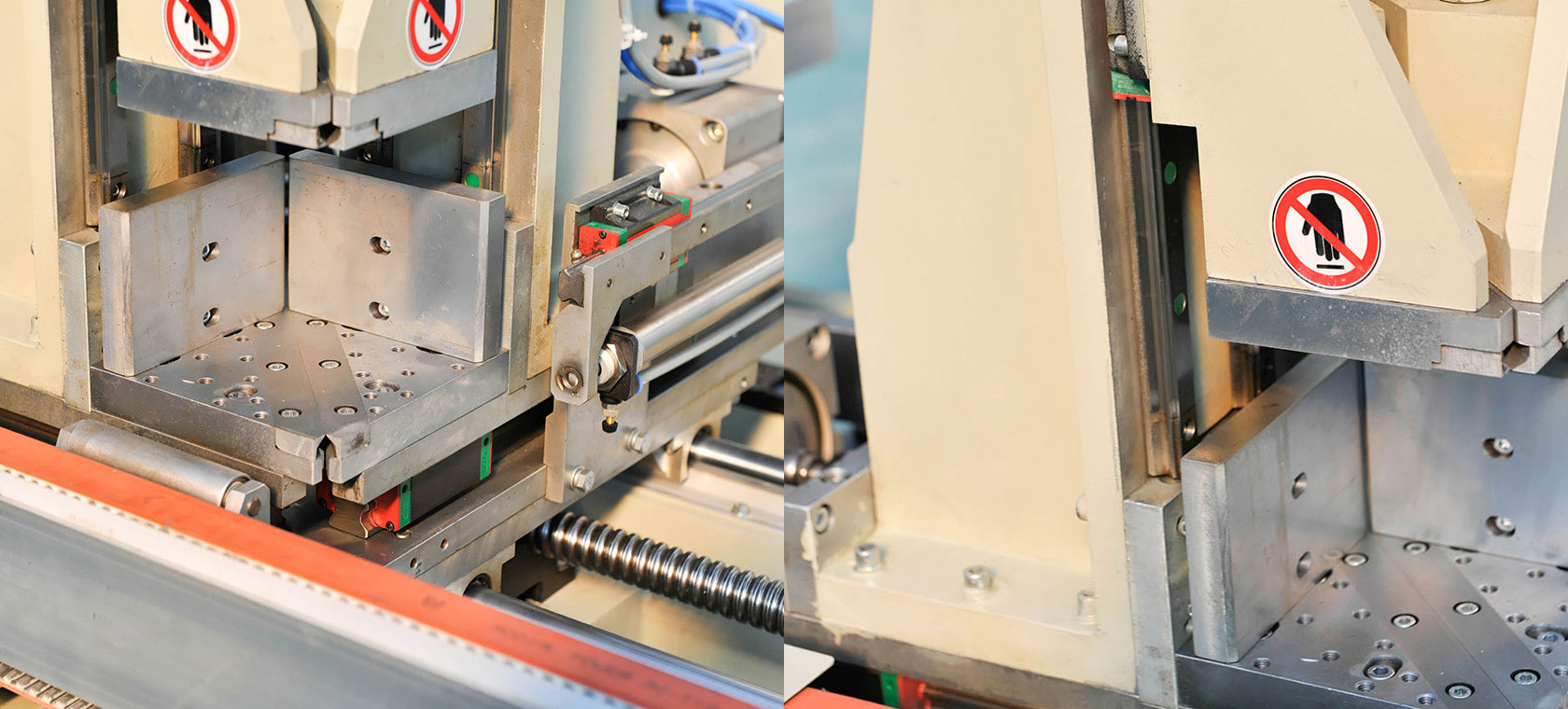

4. Unique stainless steel pinch knife and mechanical structure ensure nice 0. 2mm welding.

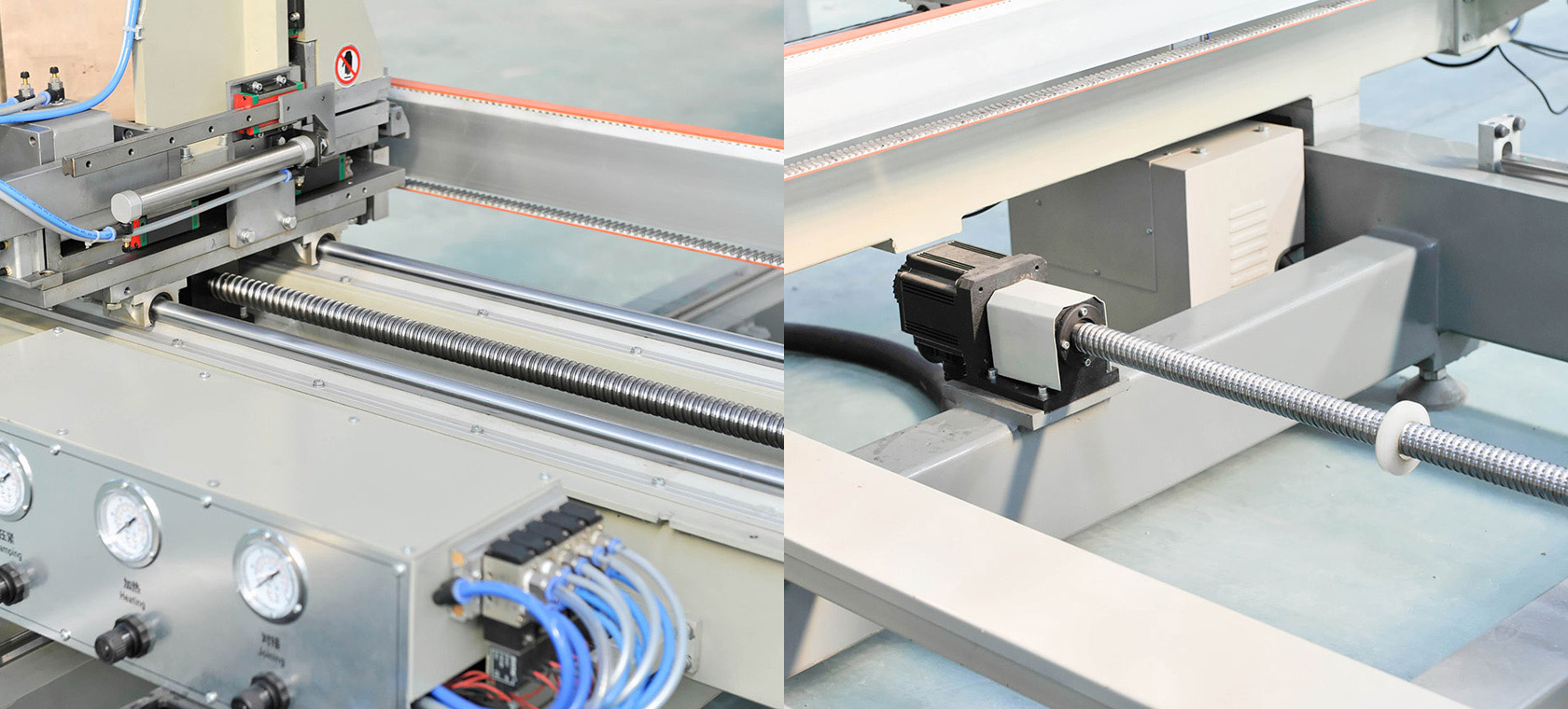

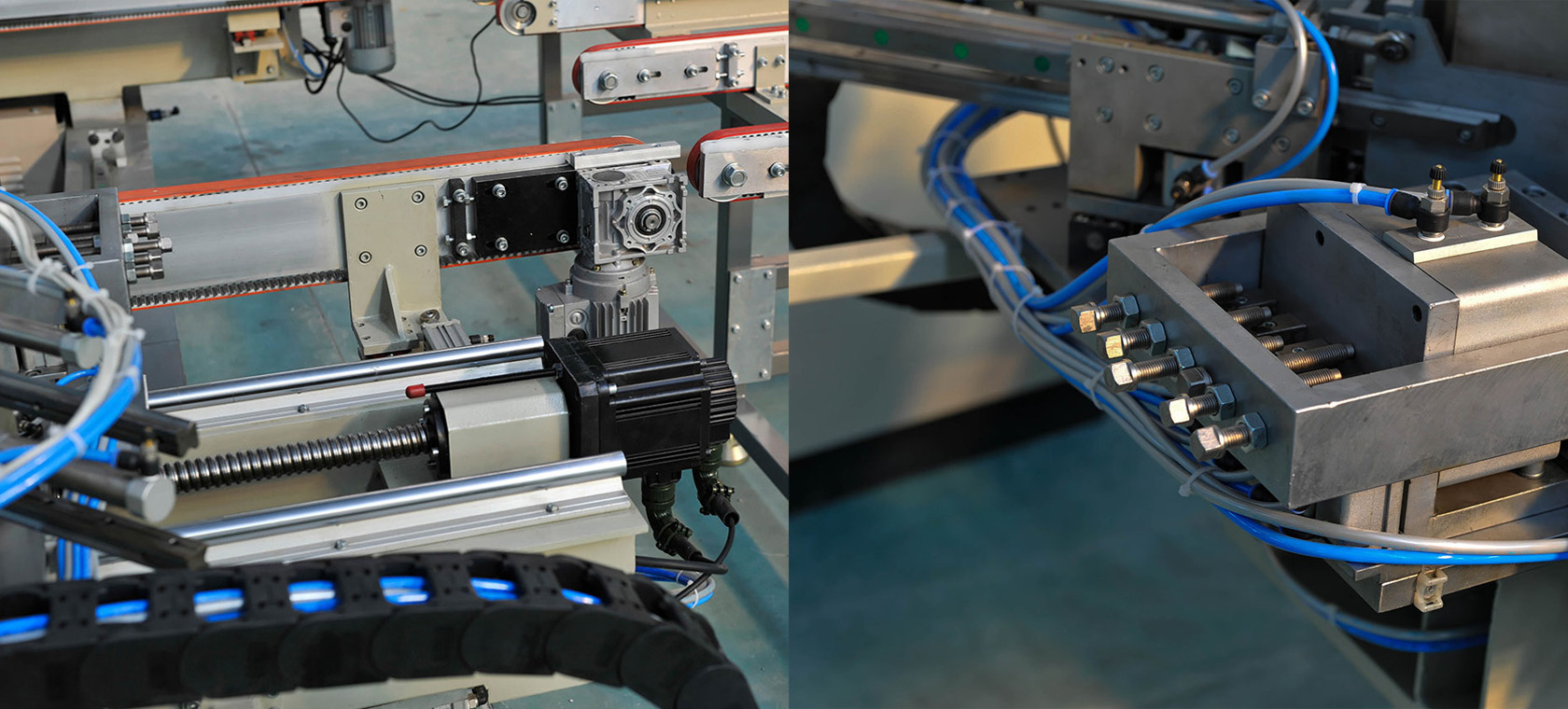

5. Ball screw shaft ensure moving precision.

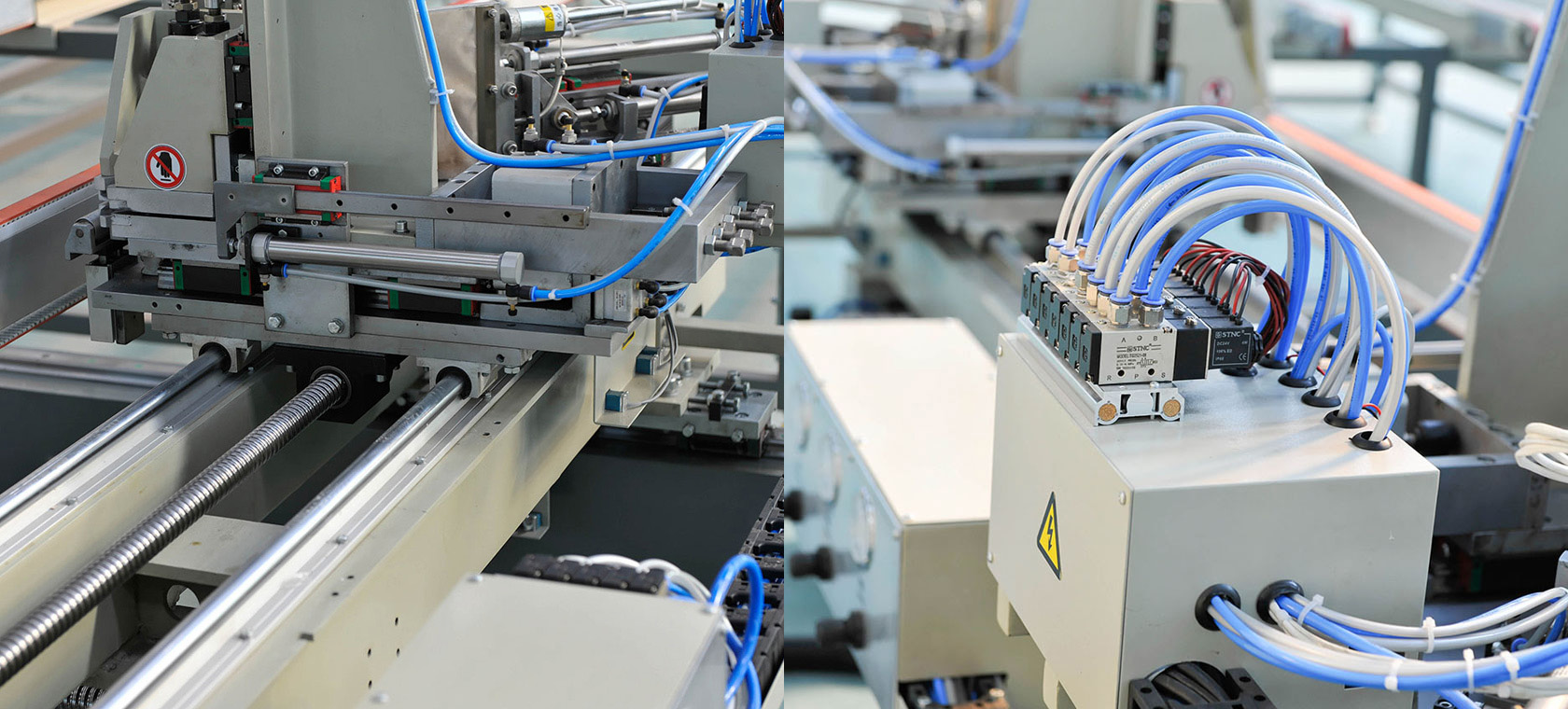

6. Square bearing system guarantee clamping, heating plate, locating plate moving precision & reliable performance.

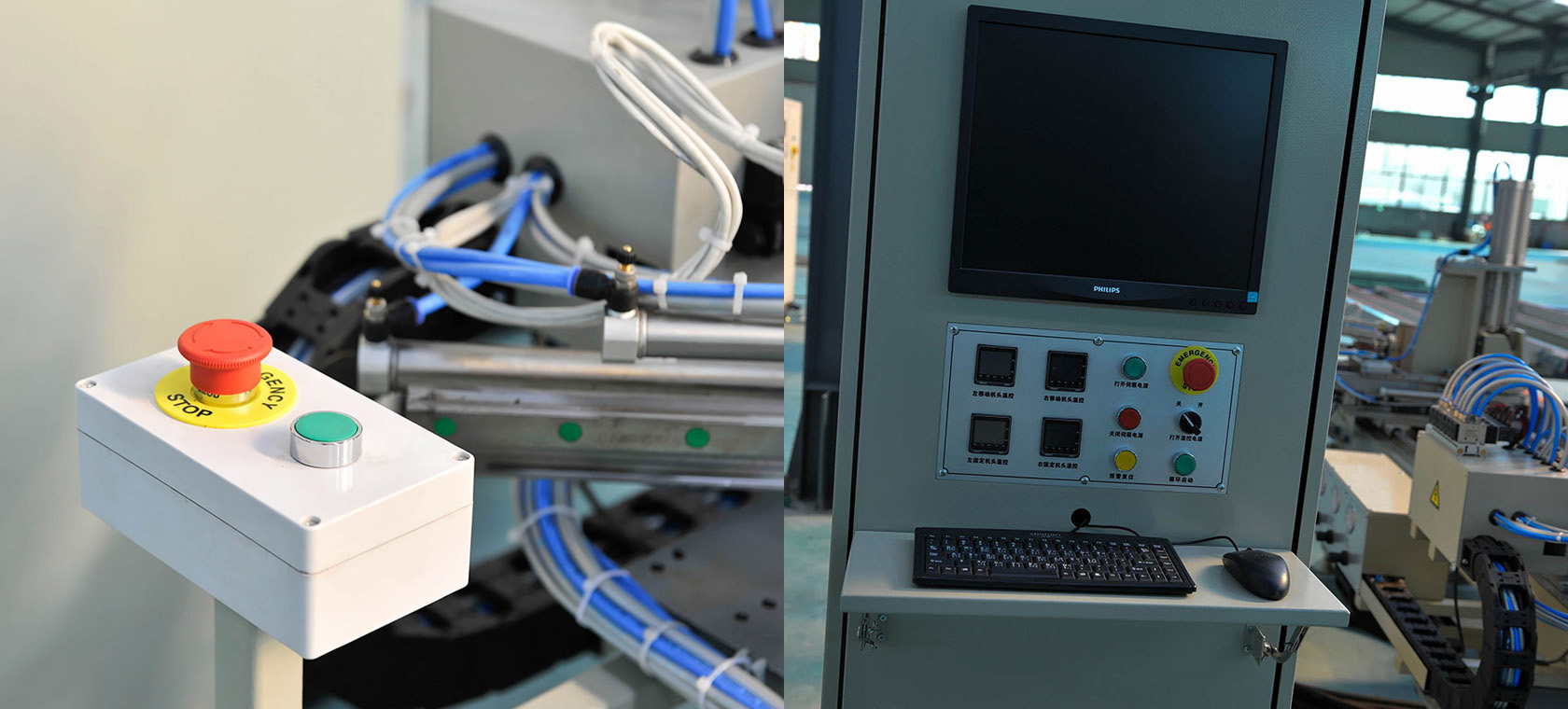

7. The advanced IPC controlling system guarantee user-friendly operation, high precision, long Life service , and easy link to other machines or production units.

8. Auto positioning by word wide famous brand AC servo motor.

9. Solid machinery base and structure ensure long life service with high dimension accuracy.

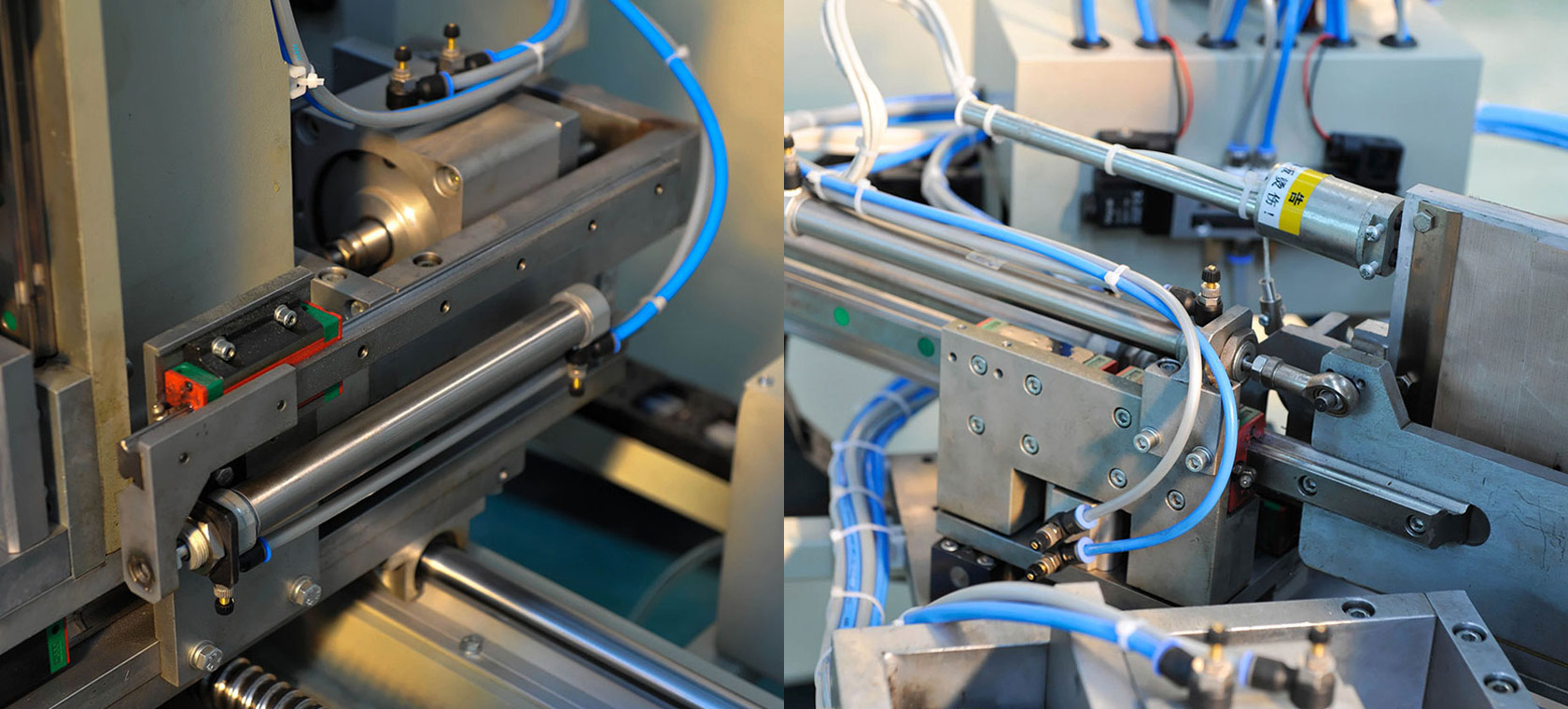

10. Imported linear bearing system kept the running stable.

11. Size tolerance compensation is available to increase welding precision.

12. profile fixture ordered separately can meet various height profiles' processing requirement.

13. Special profile fixture is easy to change, for high corner strength and later good  cleaning.

14. Special “Know — How” technique keep the high corner strength.

15. Advanced “Parallel welding “technique improves welding strength.

 Main accessory


Controlling system

Schneider or other word famous system.

Servo Motor

Schneider or other word famous system.

Solenoid valve

Airtac

Cylinder

Airtac

Air Filter Device

Airtac

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Approach Switcher

Swiss CONTRINEX or Japan Omron

Linear bearing system

Linear (South Korean brand)

Temperature Controller

Japan Omron


 Parameters


Input Voltage

3N~50Hz 380V/220V

Input Power

15(kw)

Operation Air Pressure

0.5~0.8(MPa)

Air Consumption

250(L/min)

Welding Height

30~180(mm)

Welding Width

30~120(mm)

Welding Range

500×470~2400×2800 (mm)

Overall Dimension

12500×6000×2200(mm)

Machine Weight

4500(kg)
