Features:

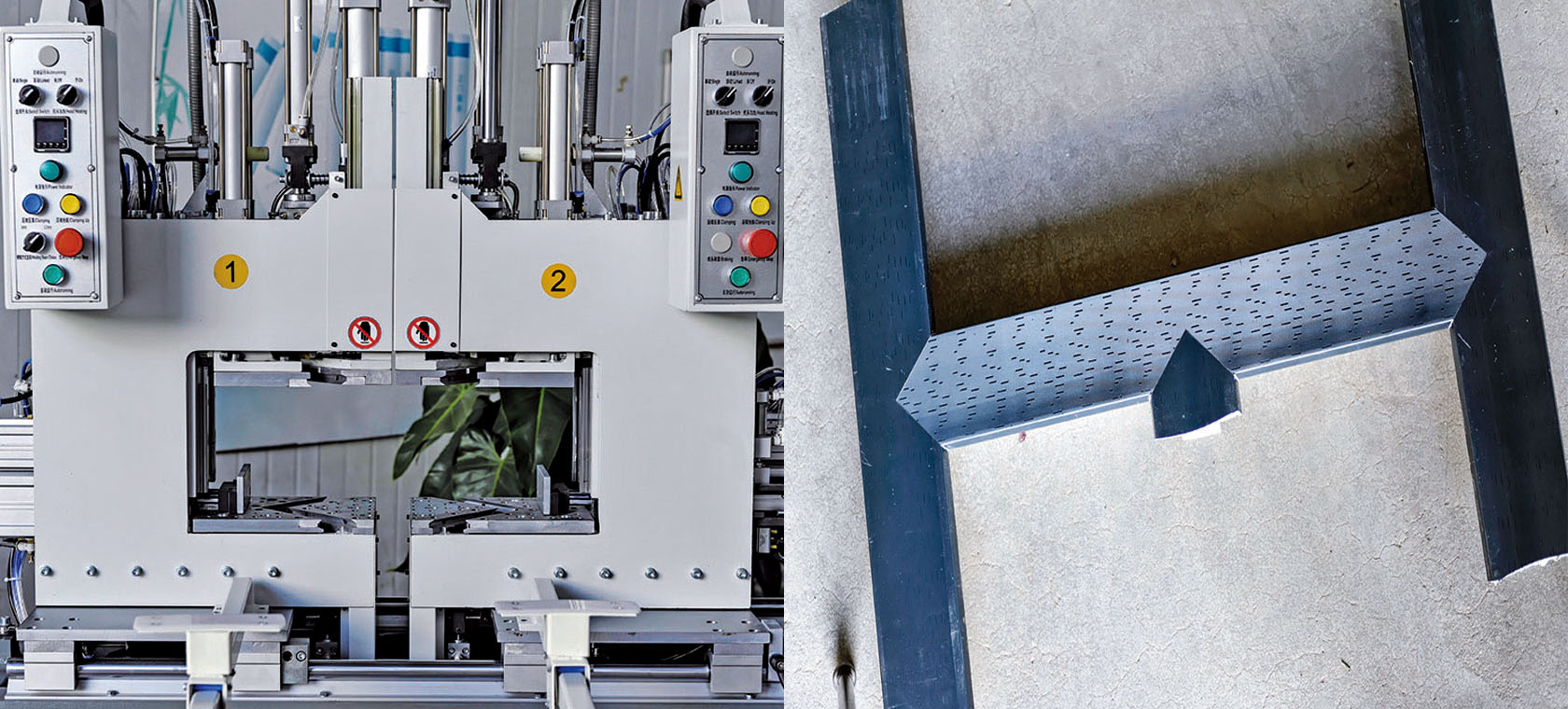

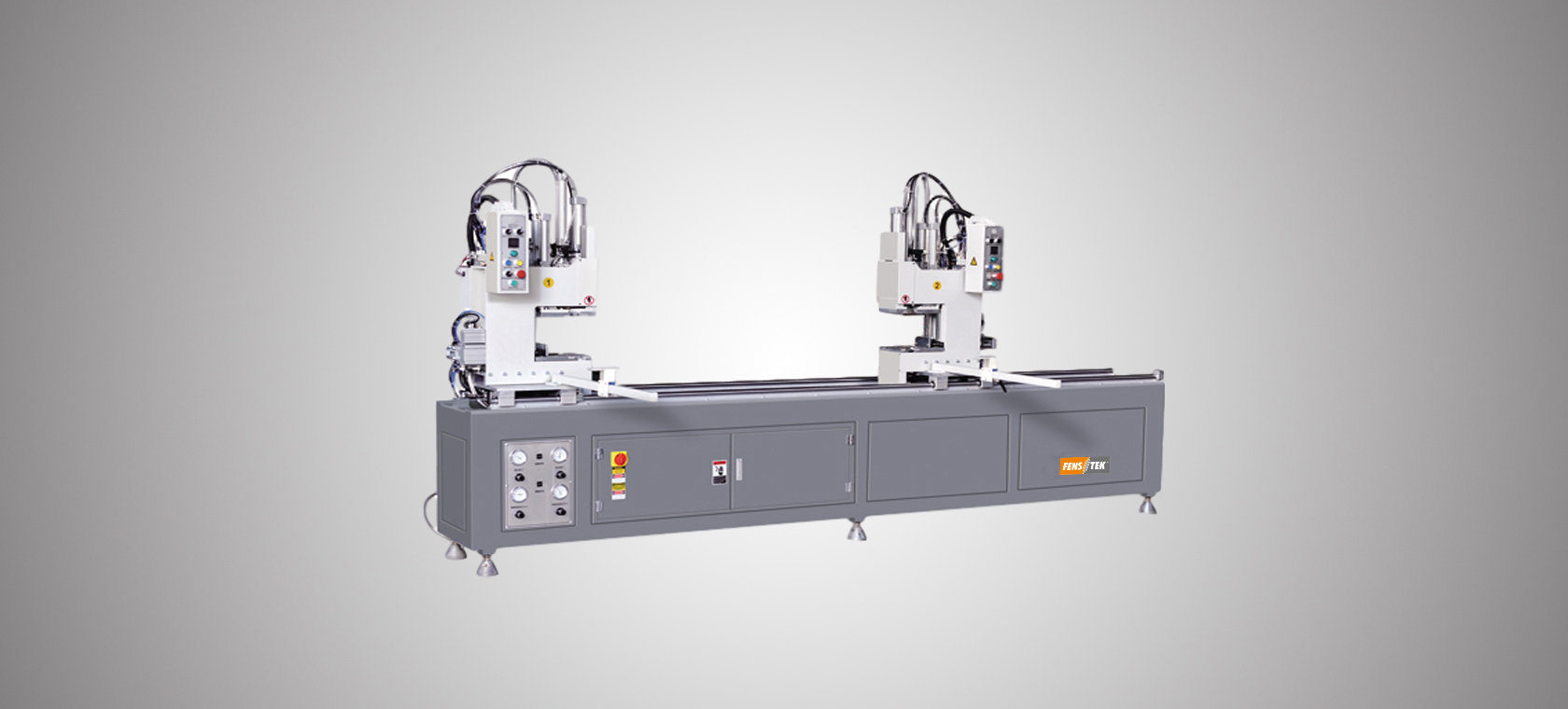

1.This machine is specially for welding H-type upvc windows.
2.Can weld H type by the combined action of the two heads.
3.2mm&0.2mm welding auto change
4.Square bearing system guarantee high precision.
Parameter | |
Input Voltage | 1N~50Hz 220V or Customer specification |
Input Power | 2.5(kw) |
Operation Air Pressure | 0.4~0.6(MPa) |
Air Consumption | 100(L/min) |
Welding Height | 20---120 (mm) |
Max Welding Width | 120 (mm) |
Mullion profile min welding length | 390mm |
Overall Dimension | 4100mm×550mm×1700mm |
Machine Weight | 900(kg) |
