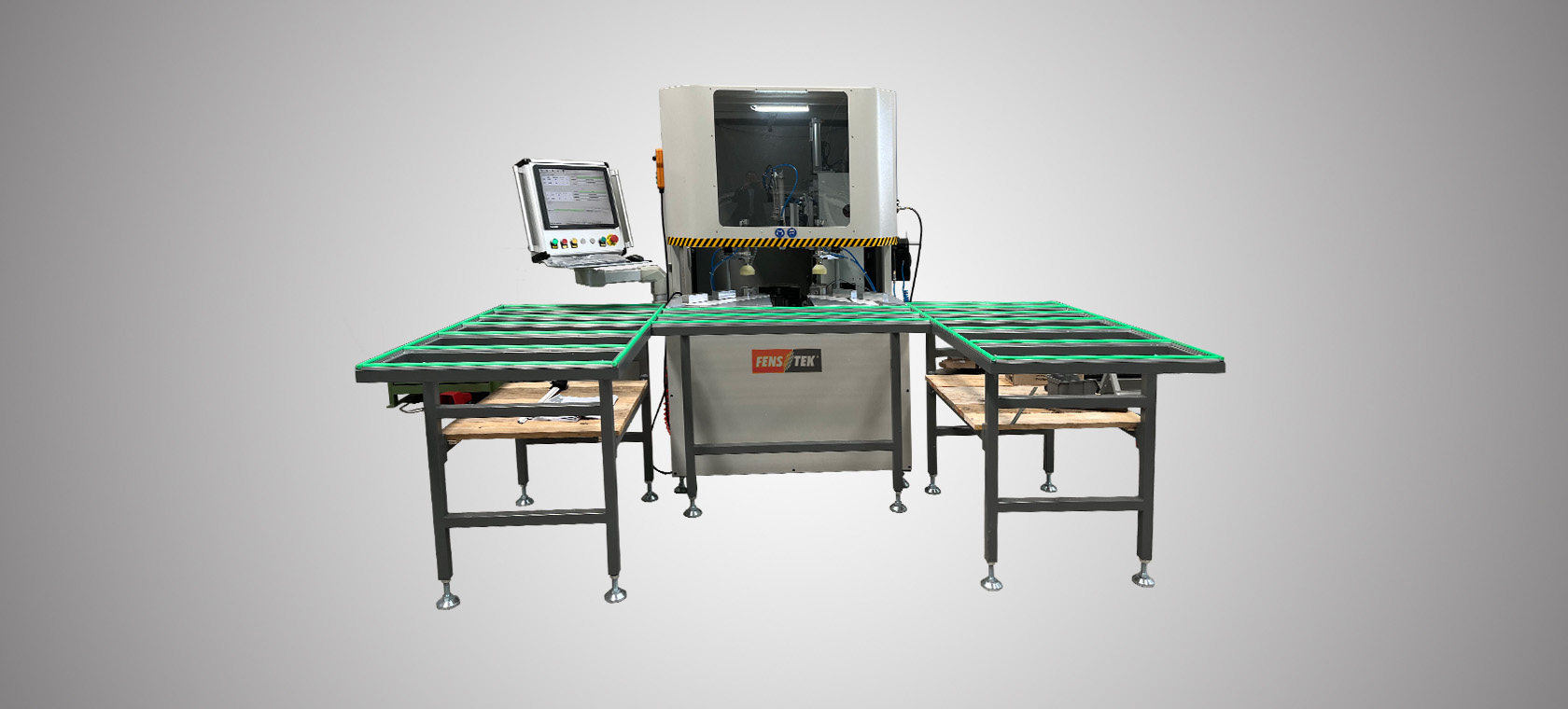

ACC120F

Four Axis CNC Corner Cleaner

Features:

1.Most stable welcomed mature CNC corner cleaning machine.

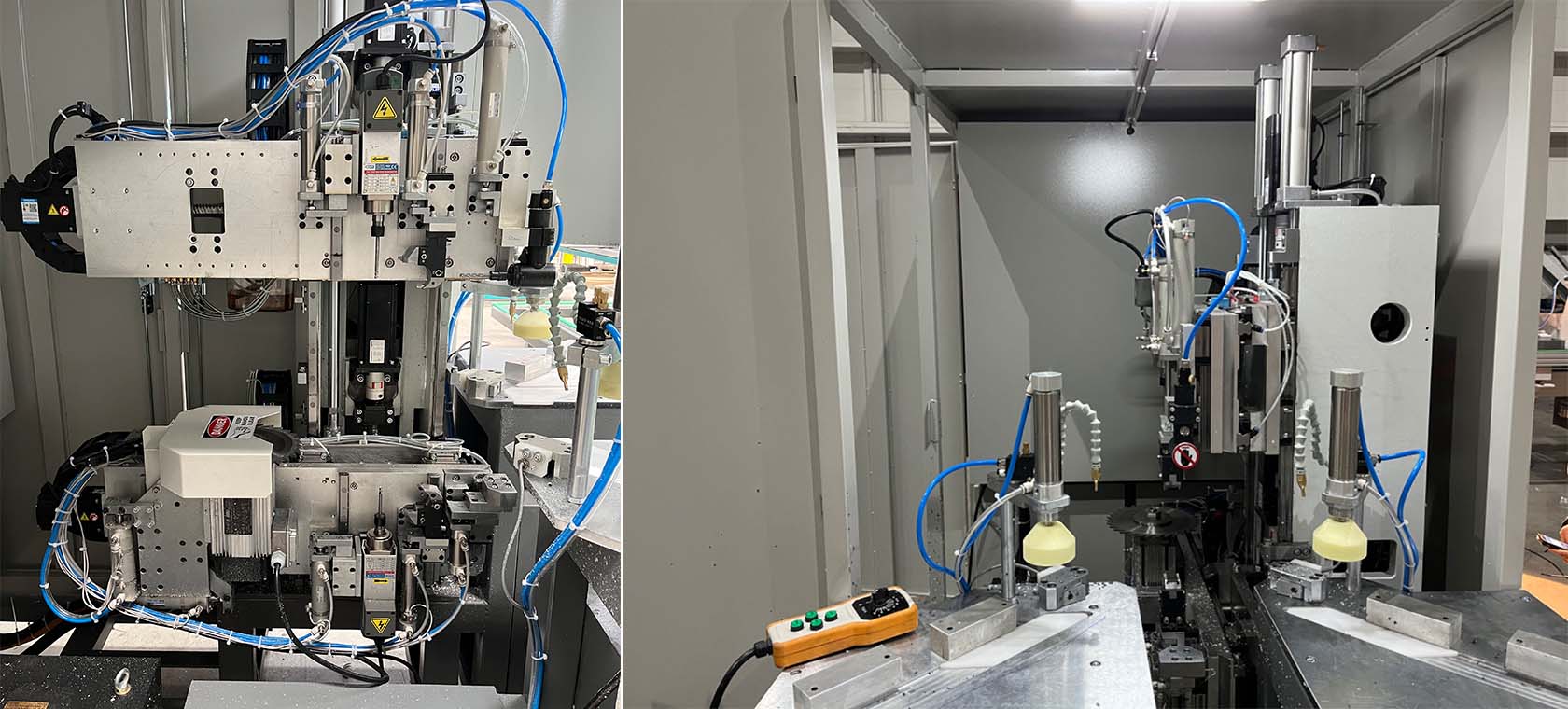

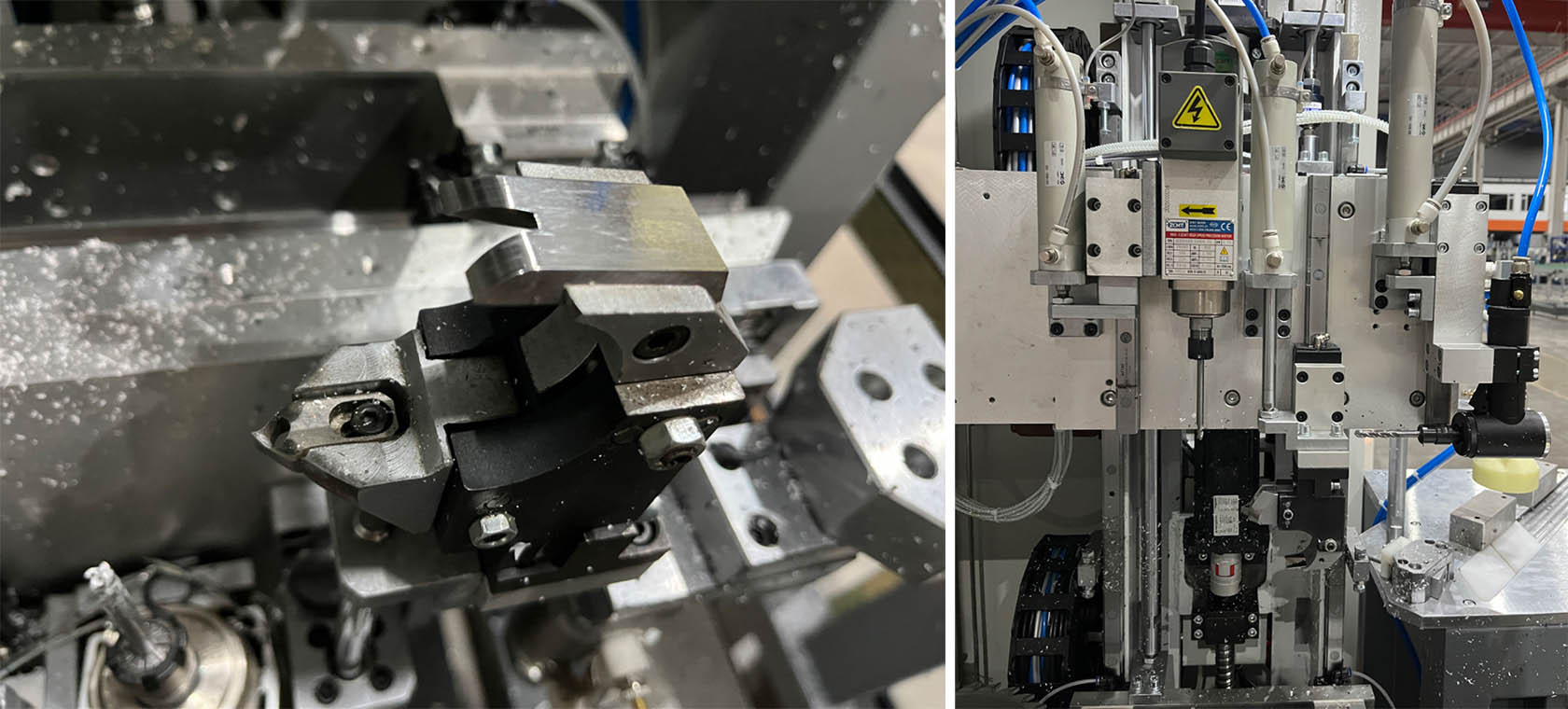

2.Totally 8 cutters(two pieces of vertical milling cutters, two pieces of pulling cutters, one piece of saw blade,two pieces of hooking blade,one piece of horizontal milling blade) will be automatically cleaning surface, vertical ,horizontal and inside rubber gasket groove,inner part corner. No need tool change.

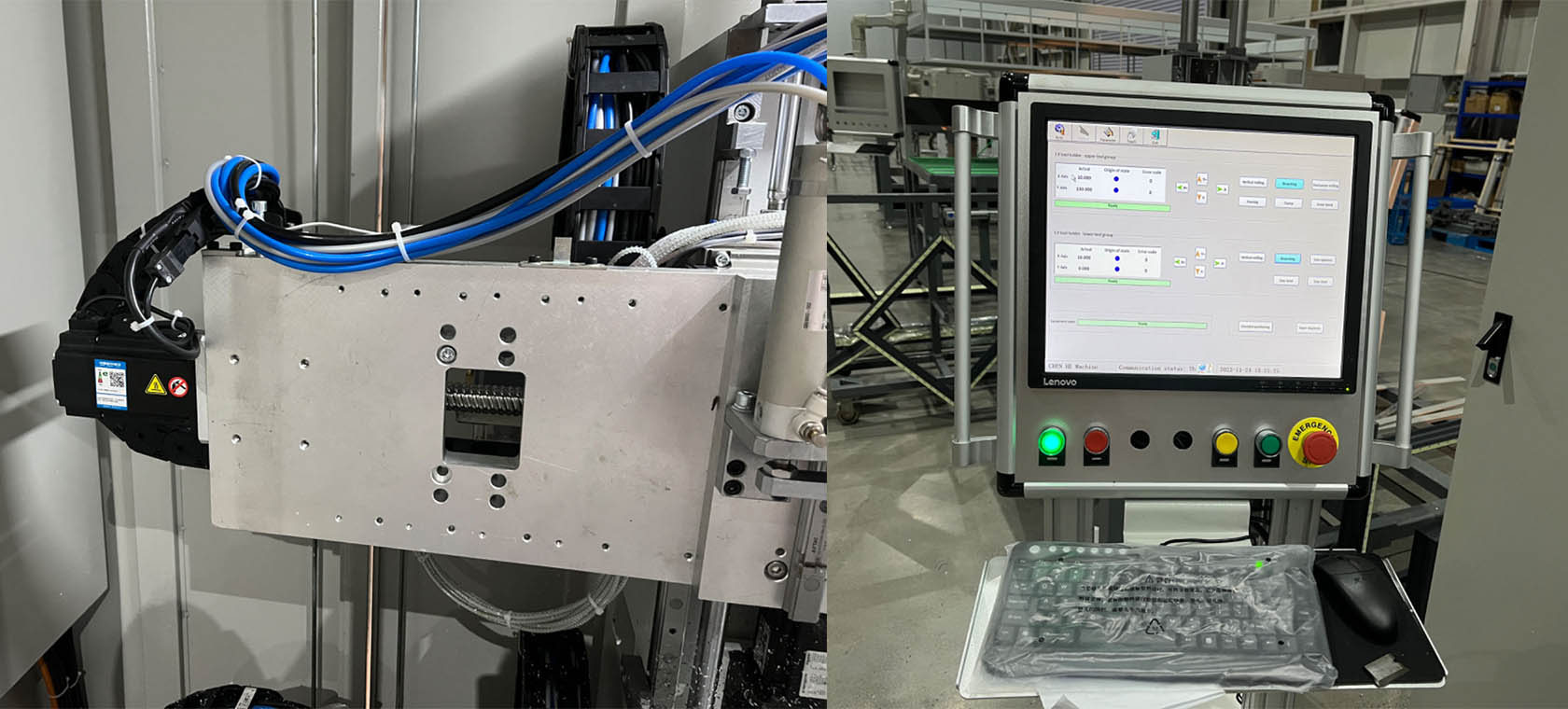

3.Advanced IPC controlled full machinery automatically precise running.

4.The milling cutters are controlled by spindle motor, much more stable, they are in the CNC axis, very easy to adjust.

5.Diagonal and arc difference compensation function.

6.Four axis moved by ball screw shaft.

7.Within 25 seconds finish one corner complete cleaning.

 Main accessory

Saw blade

Japan Wagen

Solenoid valve

AirTAC

Cylinder

AirTAC

Air Filter   Device

AirTAC

Electrical   Button and Switcher

Schneider

AC Contactor   and Circuit Breaker

Schneider

Approach   Switcher

Swiss CONTRINEX   or Japan Omron

Controlling   System

Schneider

Servo Driver

Schneider


 Parameters

Air Pressure:

0.50.8MPa

Air Consumption

60L/min

Input Voltage

380V 50Hz or As Customer   Specification

Input Power

5Kw

Milling Cutter Revolution

2800r/min

Profile Height

30120mm

Profile Width

20120mm

Overall Dimension

3050mm×2810mm×2000mm

Weight

1000kg
